Panel Scribing Saw Blade

Product name: Woodworking single-stroke double sliding saw blade

Type: Slide table saw blade

Color: silver

Size/mm: diameter*tooth thickness*body thickness*aperture*number of teeth

120*2.8-4.0/2.2*20*24T

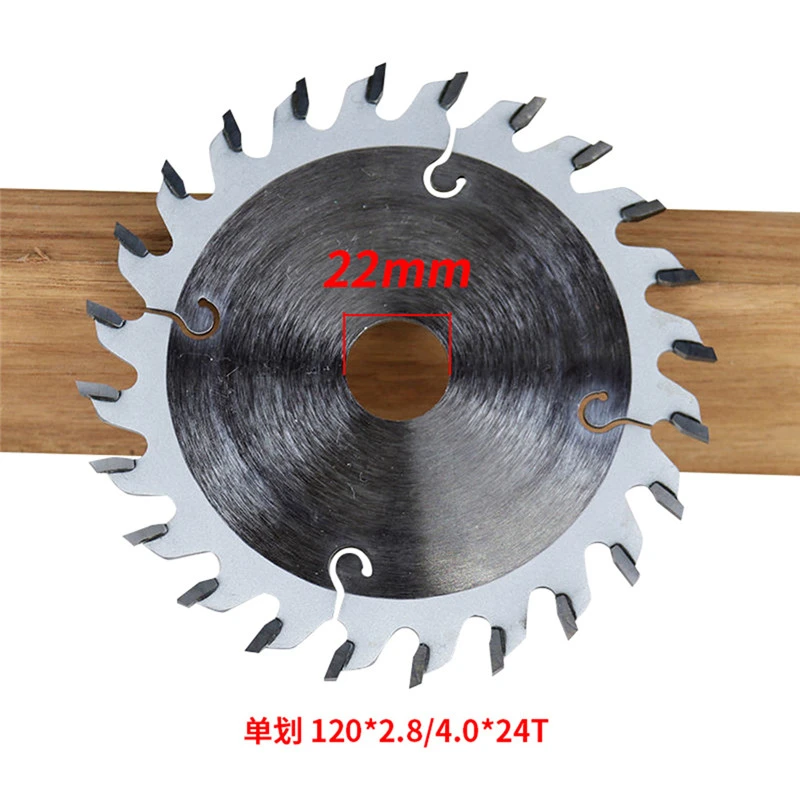

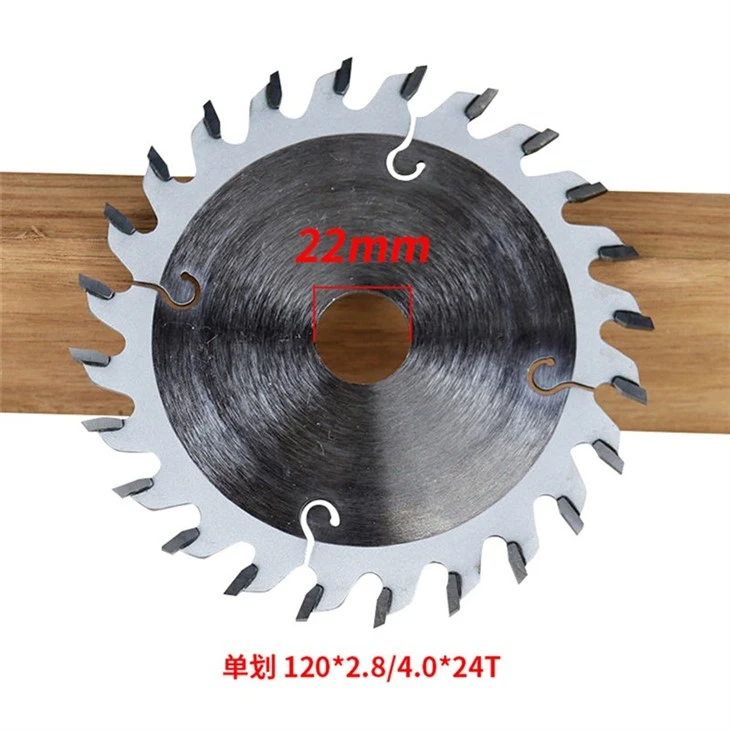

120*2.8-4.0/2.2*22*24T

Adjustable scoring blade for panel saws

Application: For chip-free scribing on plastic laminates.

Machines: Horizontal and vertical sizing machines, equipped with scoring devices, which do not allow adjustment of the cutting depth.

Material: Single or double sided plastic laminate, MDF.

There are different grades of woodworking circular saw blades, including DIY grade, general grade and industrial grade, etc. The main differences come from the following aspects:

Different saw body and TCT materials, durability (lifetime)

Is the thickness of the saw body uniform

Are the outer circle and the inner circle concentric

Sawtooth welding process.

The service life of industrial-grade saw blades is at least 10-30 times that of general-purpose and DIY-grade saw blades. The saw body is uniform to maintain workpiece cutting accuracy. The outer and inner circles are concentric to ensure no cutting tolerance. The saw teeth are also suitable for different workpiece cutting depths. After fine welding, it ensures that industrial large-volume and long-term continuous cutting work does not stop.

Industrial-grade blades can be used to replace DIY and general-purpose grade blades, but DIY and general-purpose grade blades, even if coated with nano or other coatings, are not suitable for industrial work. Due to the large difference in production costs, the price of industrial-grade saw blades is much higher than that of DIY-grade and general-purpose grades.

120mm woodworking circular saw blade series.
