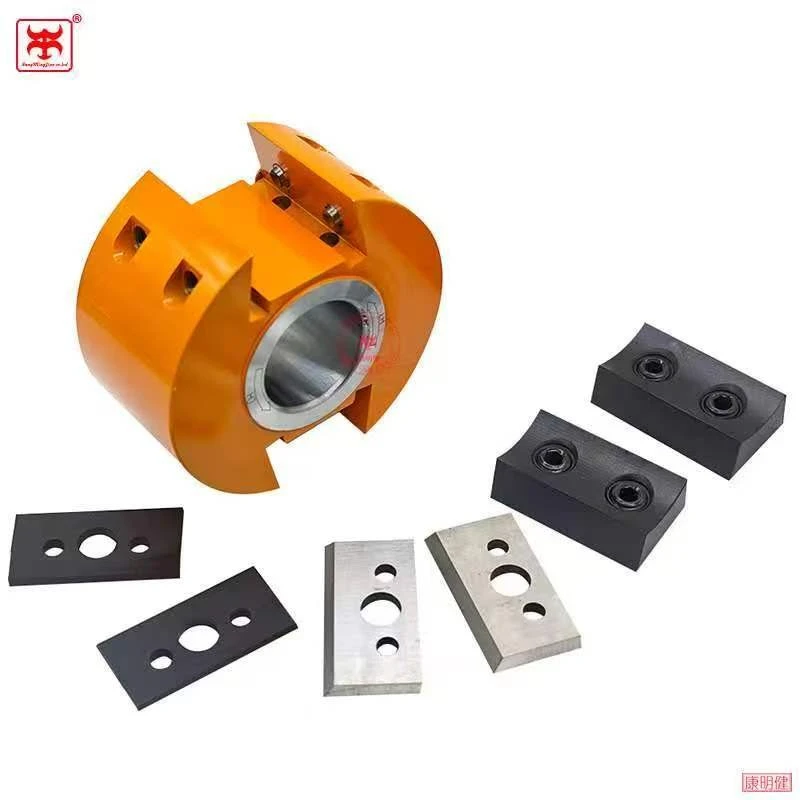

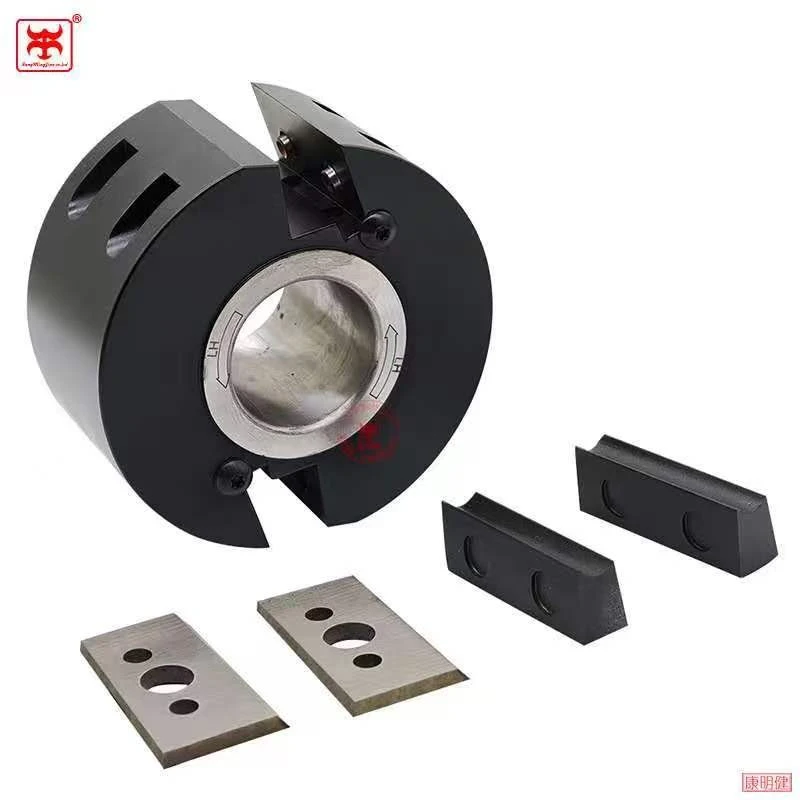

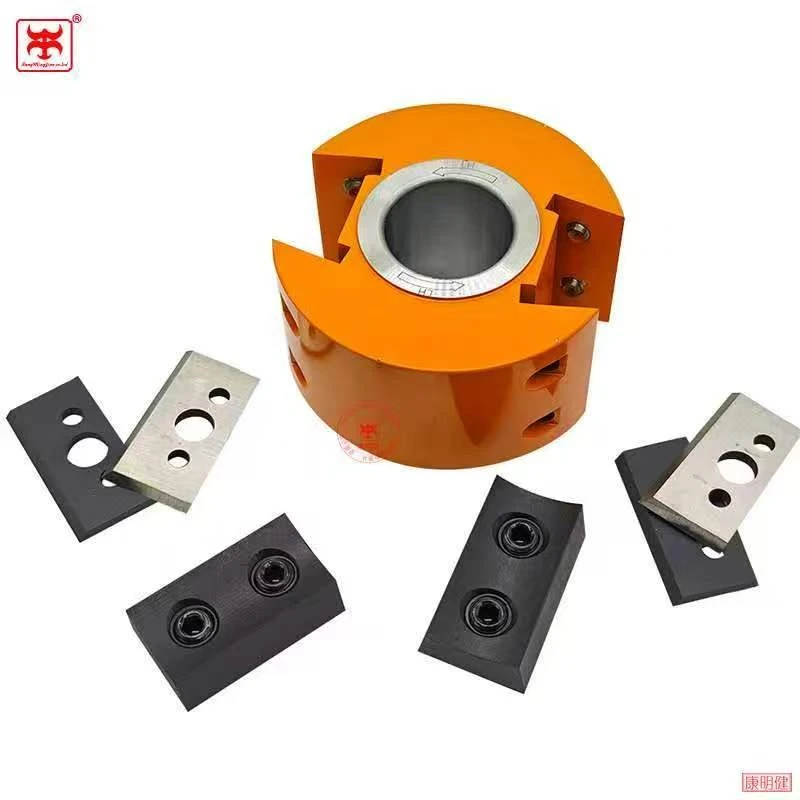

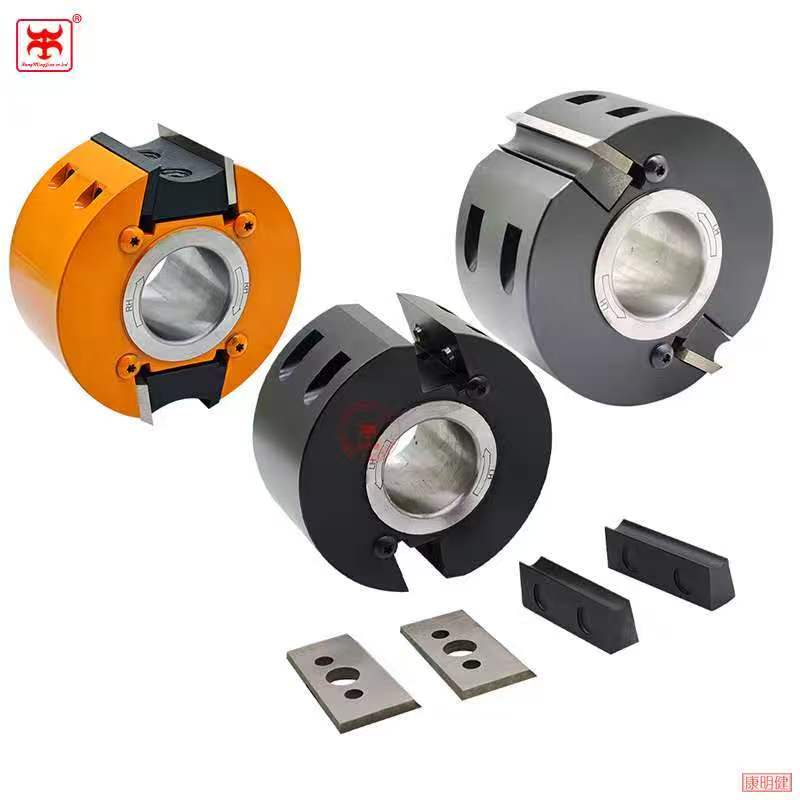

Universal Euro Cutter Blocks
It can also support surface blackening and chrome plating treatment, making it appropriate for a wide range of machine tools and processing situations.
Dongguan Kangmingjian Tool Co., Ltd. is the world's leading manufacturer of Universal Euro Cutter Blocks. Our products fully comply with all European standards and are compatible with modular tooling systems for vertical axis milling machines. They are mainly used for shaping, cutting, slotting, chamfering, profiling, and other woodworking processes. They are widely applied in professional woodworking shops, furniture factories, and wooden door manufacturers due to their universality, customizability, and high cutting precision. Users do not need to purchase an entirely new set of tool bars and holders, resulting in significant cost savings.
Core strengths
Strong universality: works with European-style knife blades from any brand, so you don't have to make special knife holders for each model. It can be used with a wide range of knives.
Great economy: When the blade wears out, you only need to replace or regrind it, not the whole blade holder. This lowers the expense of using it over time.
Safety compliance: Standard with limit blocks to limit the tool's maximum cutting amount, stop overload and tool breakage, and follow the EU CE mechanical safety standards
Modular expansion: can work with straight knives, shaping knives, groove knives, and other types of knives to do multiple processes and suit a wide range of processing needs.
OEM/ODM
The aperture, width, diameter, and surface treatment (blackening/chrome plating) can all be changed to satisfy diverse market access needs.
Offer CE and ISO9001 certification, all the necessary tools (such a limit block, a straight blade, and an internal hexagonal wrench), and the ability to buy in quantity.
Support neutral packaging or brand-specific packaging, offer cross-border logistics and customs declaration paperwork, and be ready for foreign commerce export situations.
Maintenance
After changing tools, clean the tool slot and fastening screws well to get rid of sawdust and oil stains. This will help keep the machining accuracy.
Check the tightening torque between the blade edge and the tool holder on a regular basis, and fix any looseness or wear right away to minimise machining errors.
To keep the tool holder from rusting and getting damaged, it should be treated with rust-proofing and stored in a dry place when not in use.
Only operate the machine tool at its rated speed, and never go over that speed. This will keep the tool holder from bending or cracking.
Common Materials and Specifications
|
Material Type |
Core Features |
Applicable Working Conditions |
|
Cast Iron |
Strong rigidity, good shock absorption, excellent durability, and relatively heavy weight |
Heavy-duty, high-frequency mass production, suitable for long-term continuous operation |
|
Cast Aluminum/Aluminum Alloy |
Light weight, fast heat dissipation, labor-saving operation, slightly weaker rigidity than cast iron |
Light-duty processing, small and medium batch production scenarios with frequent tool changes |
|
Steel |
High hardness, strong impact resistance, cost between cast iron and aluminum |
General-purpose processing, balancing durability and cost-effectiveness |
FAQ
Q: Is it possible to keep the machining tolerance of Universal Euro Cutter Blocks stable when it is ≤ 0.01mm?
A: It can be kept stable, and the tool holder uses precision milling technology and high-quality materials, so there are no changes in tolerances.
Q: Will the clamping screws loosen after long-term high-frequency use?
A:Our screws are made of high-strength alloy and matched with precise thread processing; they maintain stable clamping and rarely loosen under normal operation.
Q: What else can you do than cleaning if the knife holder leaps when you're using it?
A: To fix the problem, check the installation offset of the limit block, the space between the blade and the groove, and the spindle's concentricity.
Q: Will blackening or chrome plating the surface of the tool holder influence how accurate it is?
A: No, the surface treatment thickness should be kept between 0.02 and 0.05 mm, which does not change how accurate the cutting groove and aperture are.
Q: What things determine how long the knife holder will last?
A: The material, processing load, and maintenance circumstances are the primary things that impact how long cast iron tool holders may be used. Under typical working conditions, cast iron tool holders can last 8 to 10 years, aluminium alloy for 4 to 6 years, and steel for 6 to 8 years.
Q: Is an annual audit needed for CE certification?
A: You don't have to have a yearly audit, and the certification lasts for a long period. You need to apply for a new certification if the knife holder's specs or materials change.
