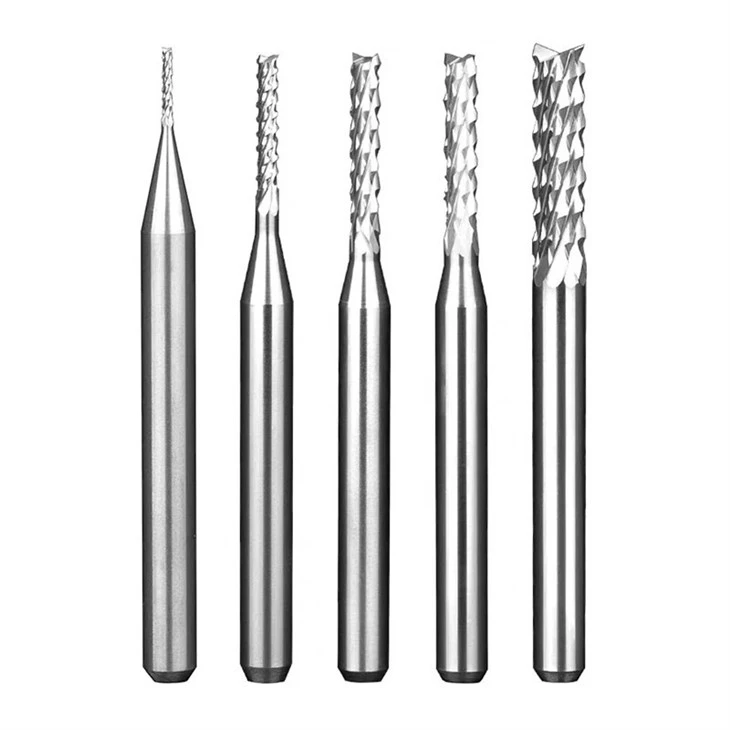

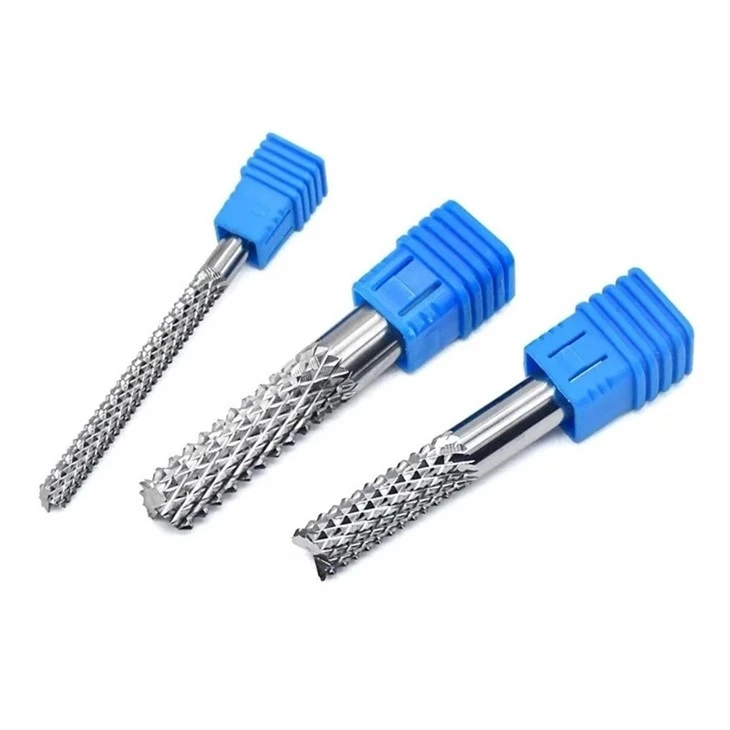

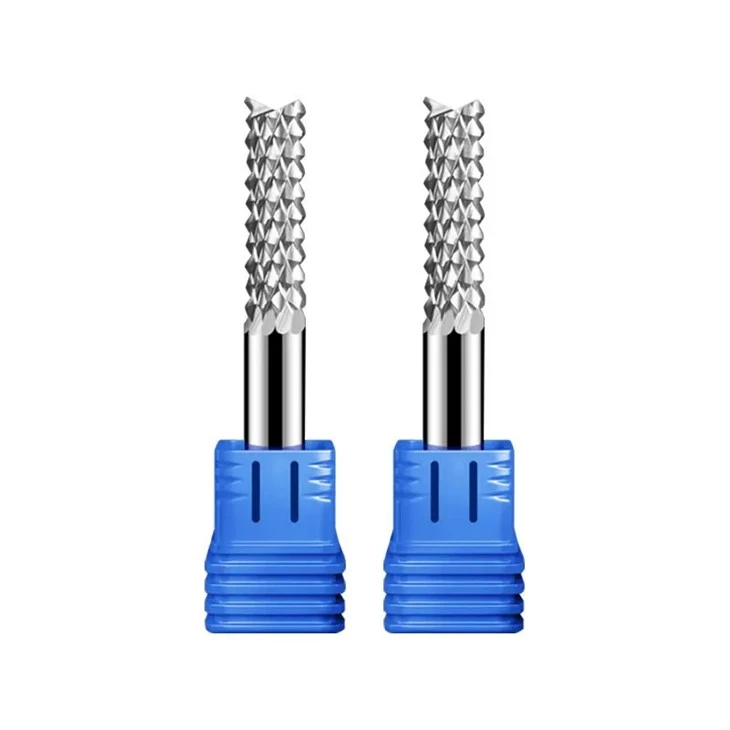

PCB Corn Teeth End Mills
Type of machine: CNC milling machine
Accurate: 0.005-0.01mm
Shank diameter: 4-40 mm
Corn Milling Cutter
Material: Tungsten cobalt alloy, tungsten carbide
Type of machine: CNC milling machine
Accurate: 0.005-0.01mm
Shank diameter: 4-40 mm
Chip flute diameter: 0.3-40 mm
Suitable for: woodworking
Features
1. Special cutting edge: Special cutting edge can increase cutting ability. Tools and machines will last longer.
2. Smooth and wide grooves: Smooth and wide grooves will make it easier to remove chips.
3. Heat-resistant coating: With high heat-resistant HELICA coating, it can be used for high-speed processing.
4. High-quality raw materials: The raw materials are made of high-toughness, grain-level carbon tungsten.
5. Polished surface treatment: Through high polishing surface treatment, the friction coefficient can be reduced, the efficiency of the lathe can be improved, and more production time can be saved.
Specification
|
Model |
Chip flute diameter (mm) |
Blade length (mm) |
Shank diameter (mm) |
Total length (mm) |
|
D1.0*3*D3.175*38.5 |
1 |
3 |
3.175 |
38.5 |
|
D1.5*6*D3.175*38.5 |
1.5 |
6 |
3.175 |
38.5 |
|
D1.5*8*D3.175*38.5 |
1.5 |
8 |
3.175 |
38.5 |
|
D1.5*12*D3.175*38.5 |
1.5 |
12 |
3.175 |
38.5 |
|
D2.0*8*D3.175*38.5 |
2 |
8 |
3.175 |
38.5 |
|
D2.0*12*D3.175*38.5 |
2 |
12 |
3.175 |
38.5 |
|
D2.0*17*D3.175*38.5 |
2 |
17 |
3.175 |
38.5 |
|
D2.5*10*D3.175*38.5 |
2.5 |
10 |
3.175 |
38.5 |
|
D2.5*12*D3.175*38.5 |
2.5 |
12 |
3.175 |
38.5 |
|
D2.5*17*D3.175*38.5 |
2.5 |
17 |
3.175 |
38.5 |
|
D2.5*22*D3.175*45 |
2.5 |
22 |
3.175 |
45 |
|
D3.175*12*D3.175*38.5 |
3.175 |
12 |
3.175 |
38.5 |
|
D3.175*15*D3.175*38.5 |
3.175 |
15 |
3.175 |
38.5 |
|
D3.175*17*D3.175*38.5 |
3.175 |
17 |
3.175 |
38.5 |
|
D3.175*22*D3.175*45 |
3.175 |
22 |
3.175 |
38.5 |
|
D3.175*25*D3.175*50 |
3.175 |
25 |
3.175 |
38.5 |
|
D3.175*28*D3.175*50 |
3.175 |
28 |
3.175 |
38.5 |
|
D3.175*32*D3.175*55 |
3.175 |
32 |
3.175 |
38.5 |
|
D4*12*D4*45 |
4 |
12 |
4 |
45 |
|
D4*15*D4*45 |
4 |
15 |
4 |
45 |
|
D4*17*D4*45 |
4 |
17 |
4 |
45 |
|
D4*22*D4*45 |
4 |
22 |
4 |
45 |
|
D4*25*D4*50 |
4 |
25 |
4 |
45 |
|
D4*28*D4*55 |
4 |
28 |
4 |
55 |
|
D4*32*D4*60 |
4 |
32 |
4 |
60 |
|
D5*17*D5*50 |
5 |
17 |
5 |
50 |
|
D5*22*D5*50 |
5 |
22 |
5 |
50 |
|
D5*25*D5*50 |
5 |
25 |
5 |
50 |
|
D5*32*D5*60 |
5 |
32 |
5 |
60 |
|
D5*42*D5*70 |
5 |
42 |
5 |
70 |
|
D6*17*D6*50 |
6 |
17 |
6 |
50 |
|
D6*22*D6*50 |
6 |
22 |
6 |
50 |
|
D6*25*D6*50 |
6 |
25 |
6 |
50 |
|
D6*28*D6*55 |
6 |
28 |
6 |
55 |
|
D6*32*D6*55 |
6 |
32 |
6 |
55 |
|
D6*35*D6*60 |
6 |
35 |
6 |
60 |
|
D6*42*D6*75 |
6 |
42 |
6 |
75 |
|
D6*52*D6*75 |
6 |
52 |
6 |
75 |
|
D6*62*D6*100 |
6 |
62 |
6 |
100 |
|
D8*17*D8*60 |
8 |
17 |
8 |
60 |
|
D8*22*D8*60 |
8 |
22 |
8 |
60 |
|
D8*25*D8*60 |
8 |
25 |
8 |
60 |
|
D8*32*D8*60 |
8 |
32 |
8 |
60 |
|
D8*42*D8*75 |
8 |
42 |
8 |
75 |
|
D8*52*D8*100 |
8 |
52 |
8 |
100 |
|
D10*22*D10*75 |
10 |
22 |
10 |
75 |
|
D10*32*D10*75 |
10 |
32 |
10 |
75 |
|
D10*42*D10*75 |
10 |
42 |
10 |
75 |
|
D10*52*D10*100 |
10 |
52 |
10 |
100 |
|
D12*22*D12*75 |
12 |
22 |
12 |
75 |
|
D12*32*D12*75 |
12 |
32 |
12 |
75 |
|
D12*42*D12*75 |
12 |
42 |
12 |
75 |
|
D12*52*D12*100 |
12 |
52 |
12 |
100 |
Question
1. Delivery time: 10-15 working days.
2. Shipping terms: DHL, FEDEX, UPS, TNT, EMS, etc. According to your needs.
3. Main markets: Germany, Italy, France, Spain, Russia, Australia, Brazil, Canada, the United States, Mexico, the Czech Republic, Poland, Turkey, etc.
