CNC Woodworking Back Tooth Turning Tool

CNC woodworking back tooth turning tool is a turning tool specially used for woodworking CNC lathes, which can effectively process wooden materials, especially workpieces such as wooden stair columns and handrails. This turning tool has two optional materials, DC53 and SKD11. The hardness of DC53 material is HR60-62 degrees, and the hardness of SKD11 material is HR65-69 degrees. Therefore, the material selection can be determined according to specific needs.

The blade is wear-resistant and has a long life, allowing it to maintain good cutting results after long-term use. The cutter body is equipped with corrugated anti-slip teeth, which can provide better controllability and cutting stability, ensuring a safer and smoother processing process.

The V-shaped design of the CNC woodworking back gear lathe makes it suitable for producing smoother and finer cutting effects when cutting wood. In the V-shaped design, there are four different radii to choose from, namely R0.5, R2, R4 and R6. These different radius options can meet different processing needs.

Illustrate

Material: DC53/SKD11, two materials available

Blade: DC53 HR60-62 degrees SKD11 HR 65-69 degrees (hardness)

Knife body: with corrugated anti-slip teeth

Application: Woodworking CNC

Lathe use: cylindrical turning tool

Suitable for: More suitable for processing large workpieces, the blade can be reused.

Project Specifications

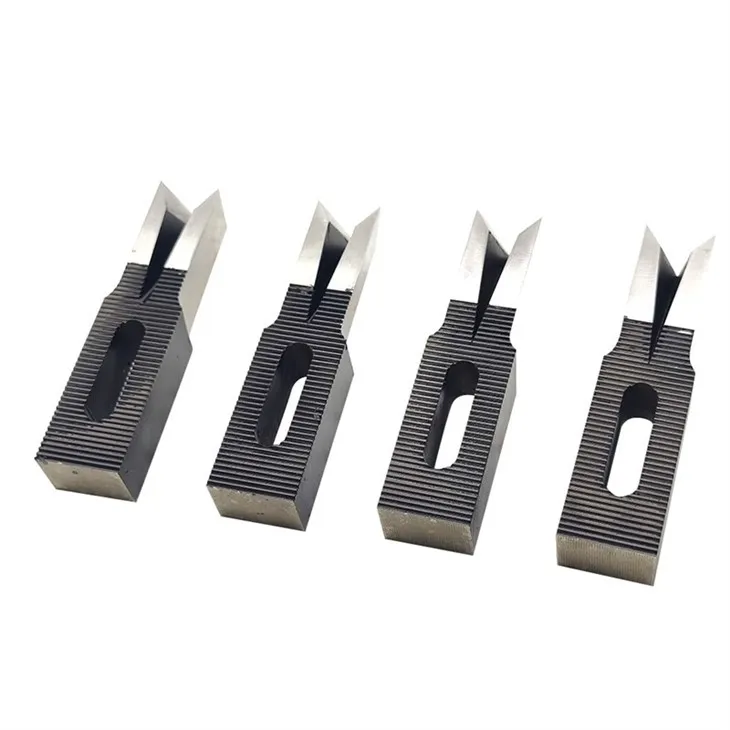

Type: V type (R0.5, R2, R4, R6)

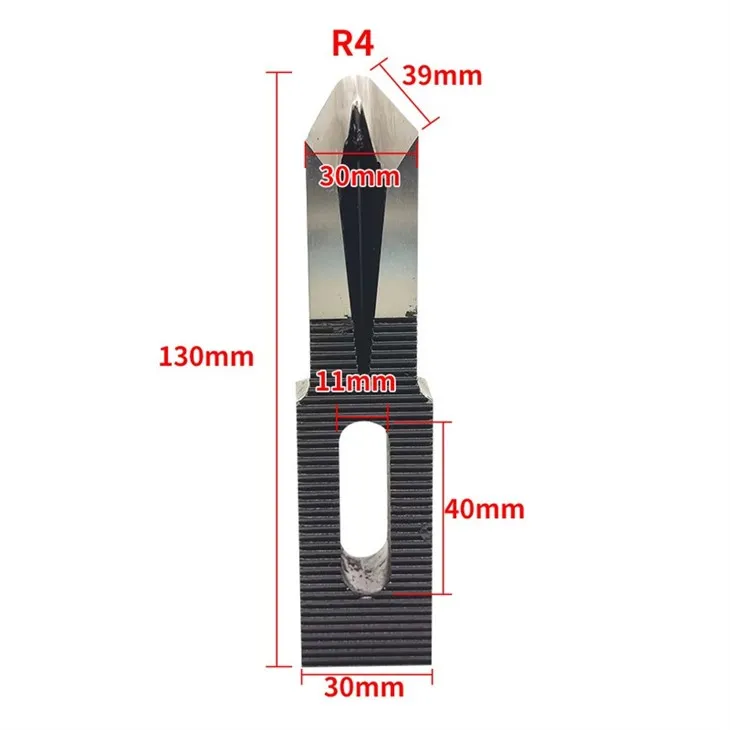

Dimensions: total length 130*width 30, blade length 39

Features: wear-resistant, long life, smoother product

CNC woodworking back gear lathe is a professional woodworking CNC lathe tool, suitable for processing large workpieces. The hardness of its material and blade ensures wear resistance and long life, while the corrugated anti-slip teeth provide better control and cutting stability. Whether it is wooden stair columns or other wooden workpieces, it can provide precise and efficient processing results.
