CNC Turning Tool

Disposable CNC Turning Tool

The real advantage of disposable CNC turning tools is that the tool body can be reused, there is no need to recalibrate the tool, and the blade can be replaced during use. Most disposable blades have at least two cutting edges per cut, while some have four. When the knife becomes dull, you simply loosen the knife (knife), rotate it, and retighten it. Setup can usually be done from the machine or on the tool, saving valuable time without re-clamping the tool.

The outer circle of the processed workpiece is smooth and burr-free. This carbide tool is ideal for finishing operations in CNC wood turning.

The turning tool uses a tungsten carbide tip. Provides a variety of blade length options, including 30mm, 42mm, 45mm and 70mm. Inserts of different lengths can meet various processing needs, from fine cutting to deep processing, and can be easily handled.

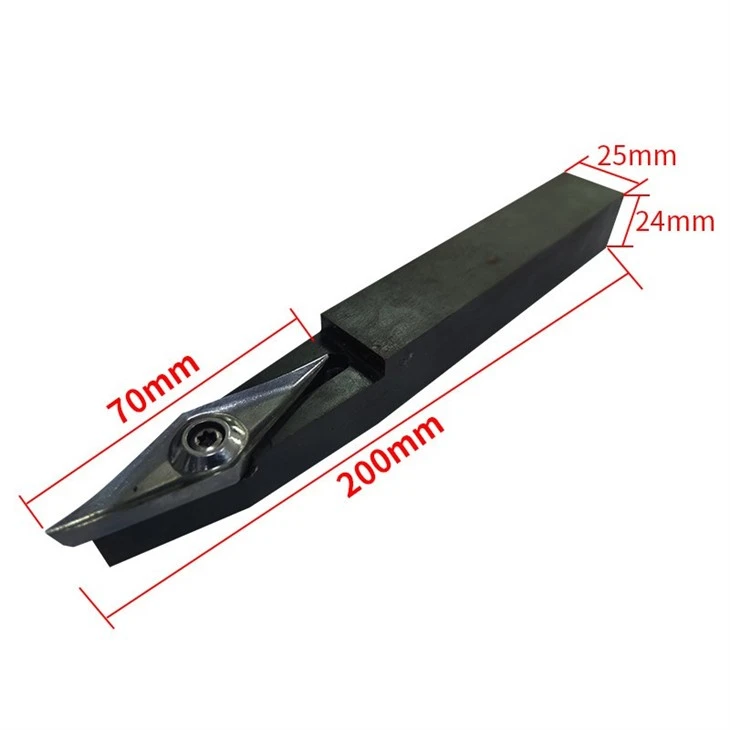

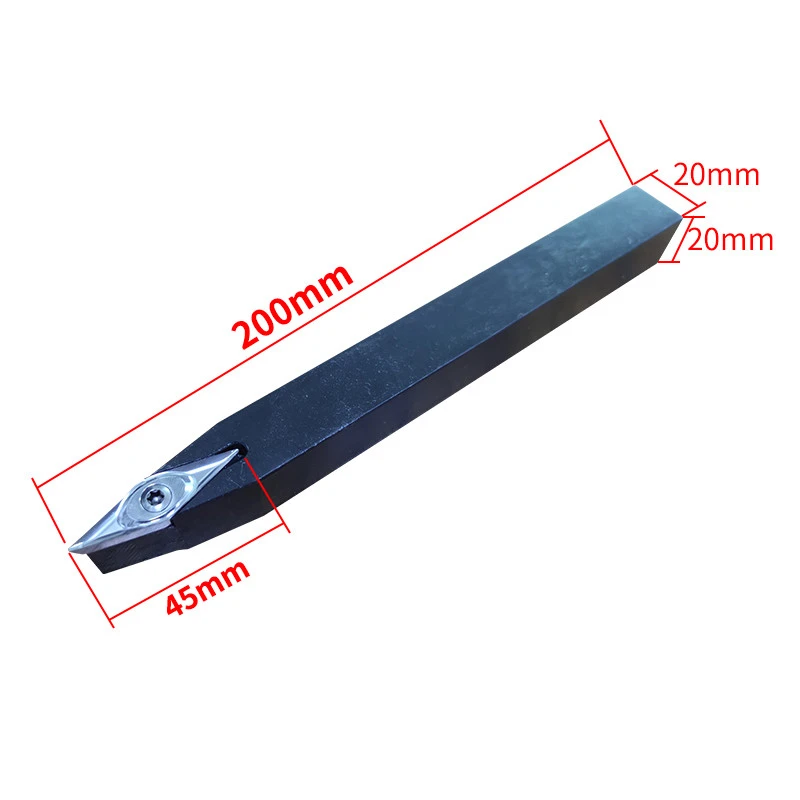

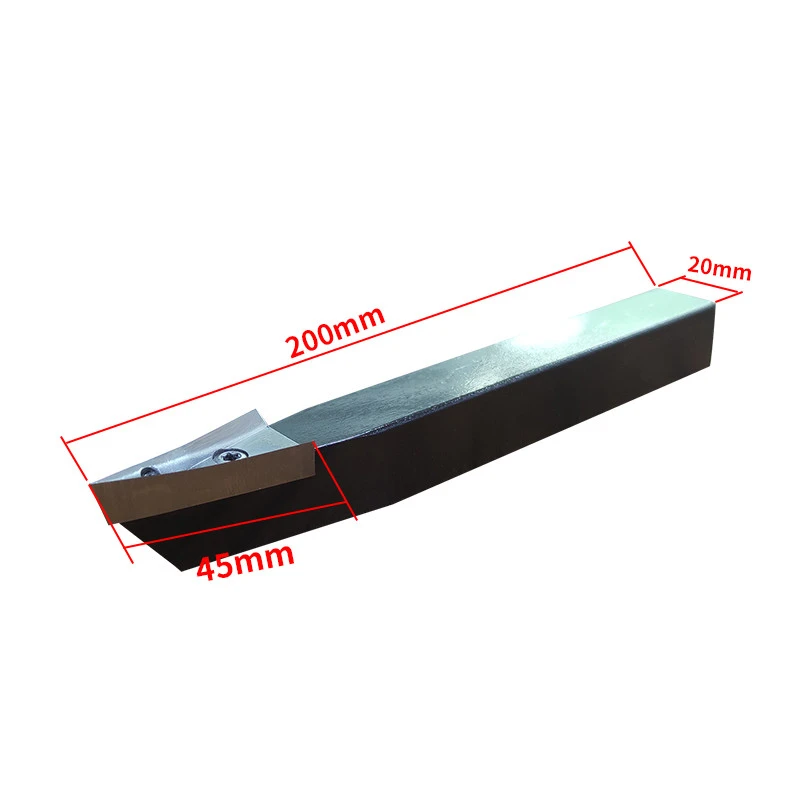

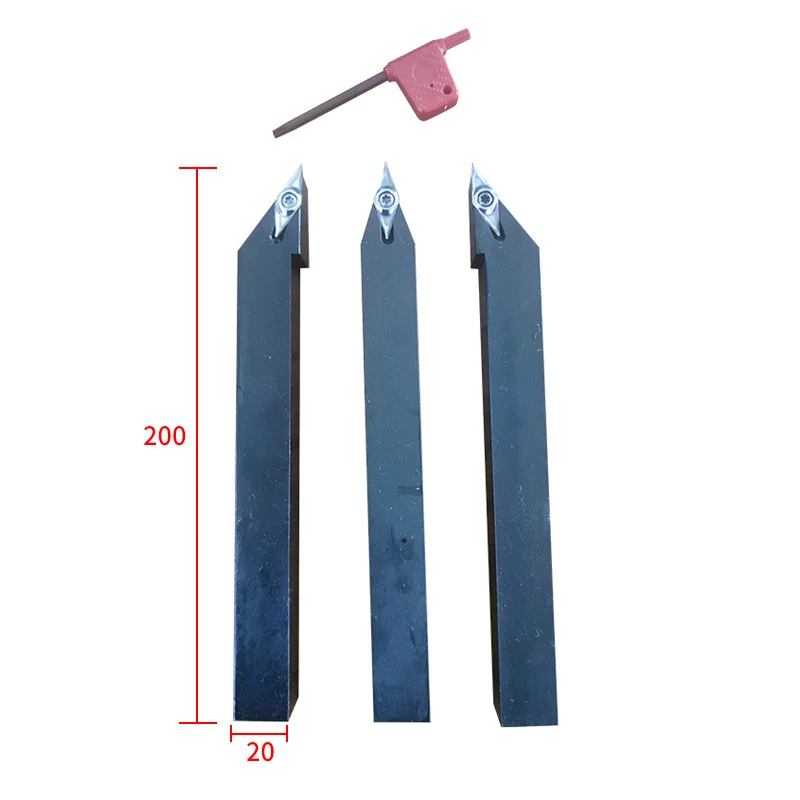

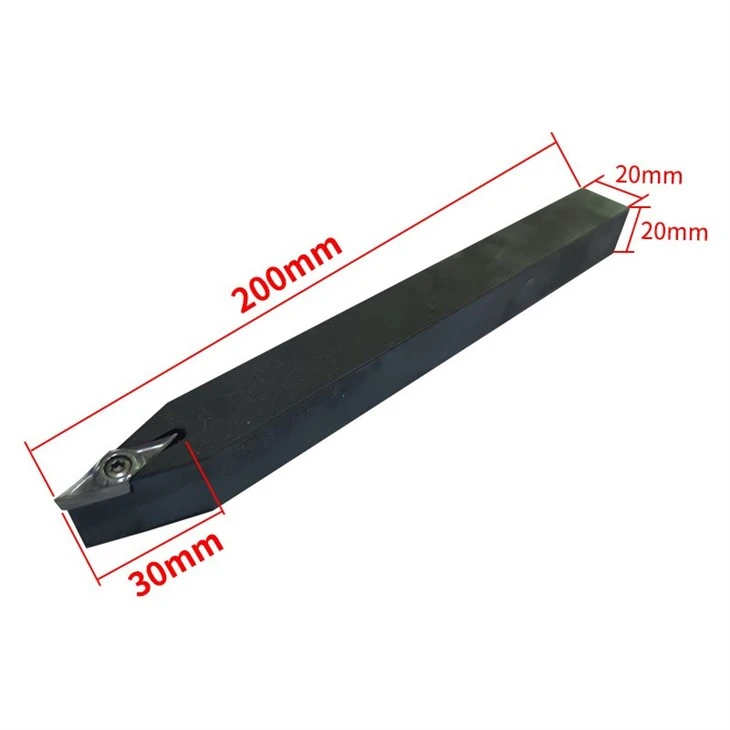

The tool holder is designed with three types: straight knife, left end face, and right end face. The hardness is HRC45-HRC49. The tool holder size with 30MM cutter head is: 20*20*125/20*20*200, and the cutter holder size with 42MM cutter head. :20*20*180, tool shank size with 45MM cutter head: 20*20*200, tool shank size with 70MM cutter head: 24*25*150.

Disposable CNC turning tools get rid of the traditional trouble of sharpening tools. Users no longer need to spend time and energy sharpening the knife, which reduces the difficulty of operation and improves usage efficiency.
