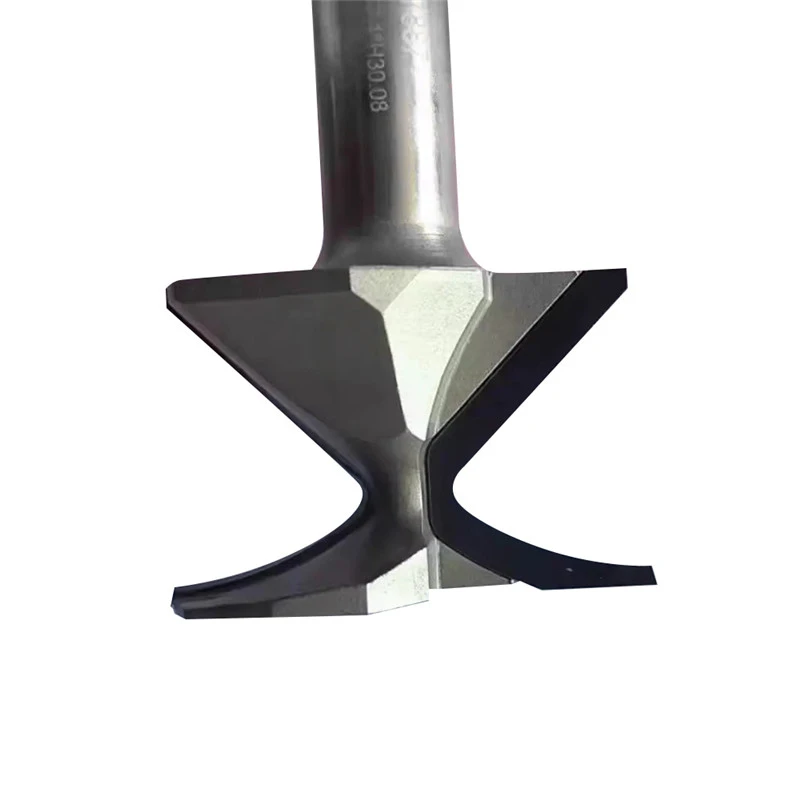

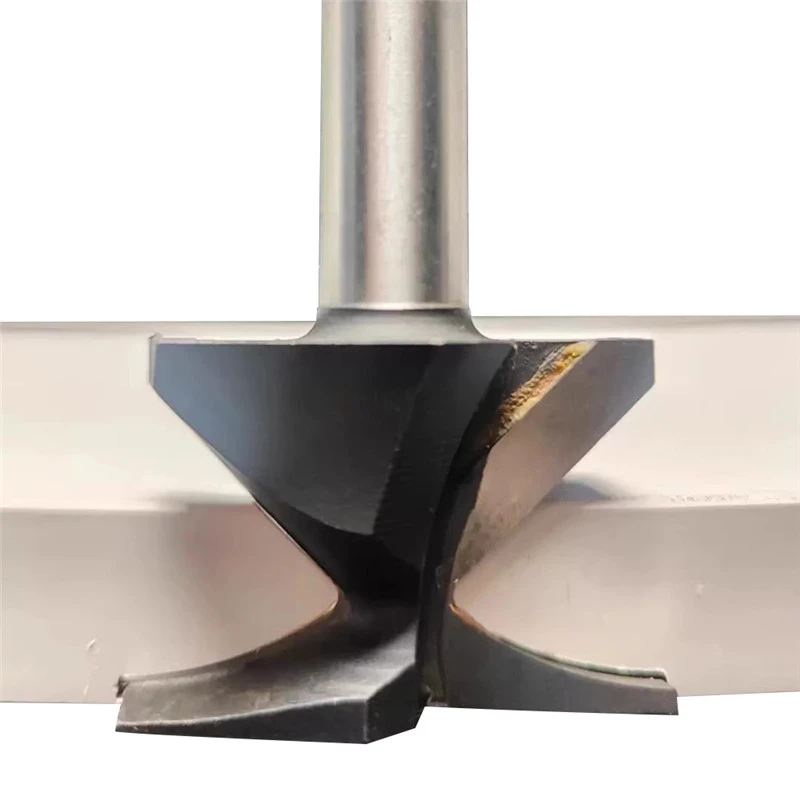

Door Wall And Cabinet Arc Folding Edge Milling Cutter

1. Blade for cutting, arc knife integrated knife.

2. Currently commonly sold models: R18, R30, R50 (referring to the size of the arc), R30 is the most commonly sold.

3. Processing range of boards: 15-22mm thickness boards.

4. Bending effect: PET boards are better, no softener is required for direct bending; melamine veneer must be used with softener, and hot air gun is used after spraying softener (softener does not need to be diluted).

5. Filling glue: Use nail-free glue or structural glue, sticky glue is fine, foam glue is not OK.

6. Applicable equipment: cutting machine, ground gong, hanging gong, cutting machine is not Need to design the path, the speed is 18000, the feeding speed is 15 meters; the gong machine must push slowly and straight.

7. Applicable boards: European pine, particles, multi-layer, medium-density fiberboard (the effect of ecological board is not ideal, it is still being tested and improved, and it will be specially designed for ecological board in the future), use arc knife to seal the edge before grooving to prevent cracking.

8. Durability: The board is normal and free of impurities, generally about 100-150 meters.

9. It is recommended to leave 1.5mm margin for bending at the bottom, and adjust the knife 1.5mm higher after normal knife alignment.

▲▲ It is recommended to buy alloy first, test the process and then choose diamond, which is more cost-effective.
