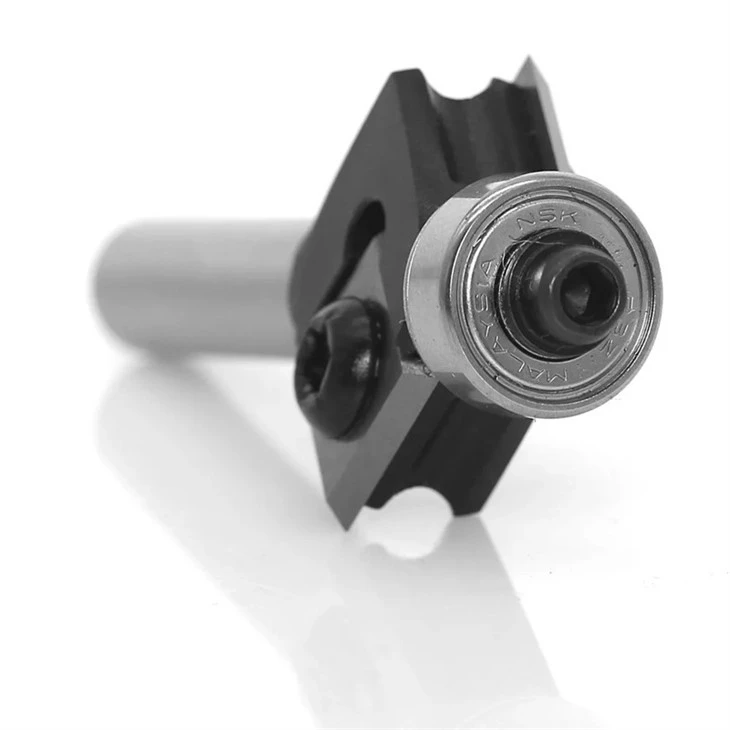

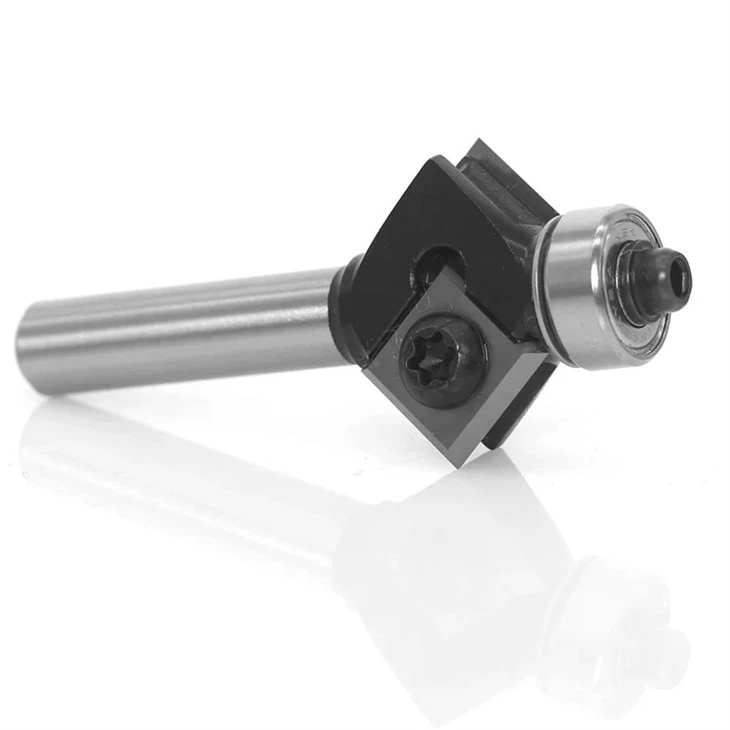

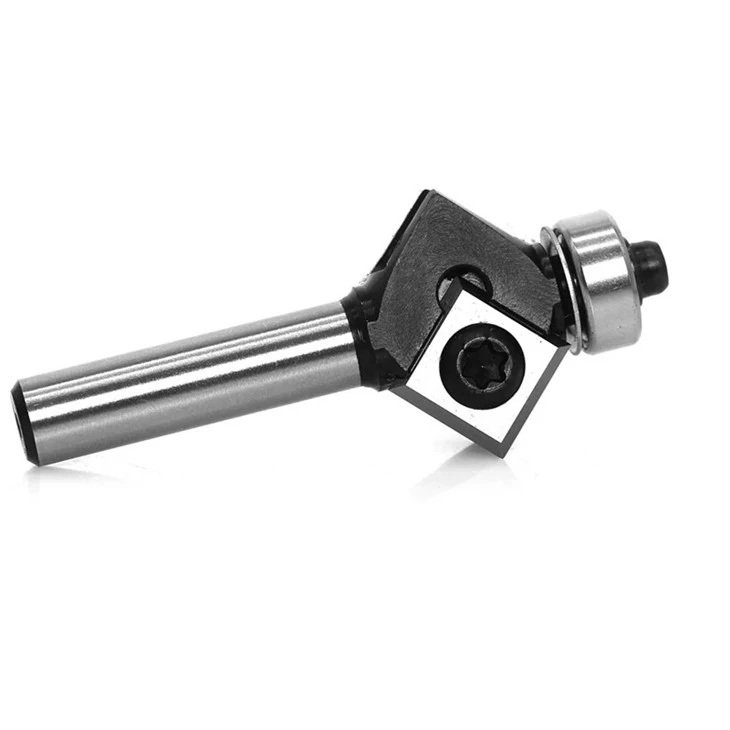

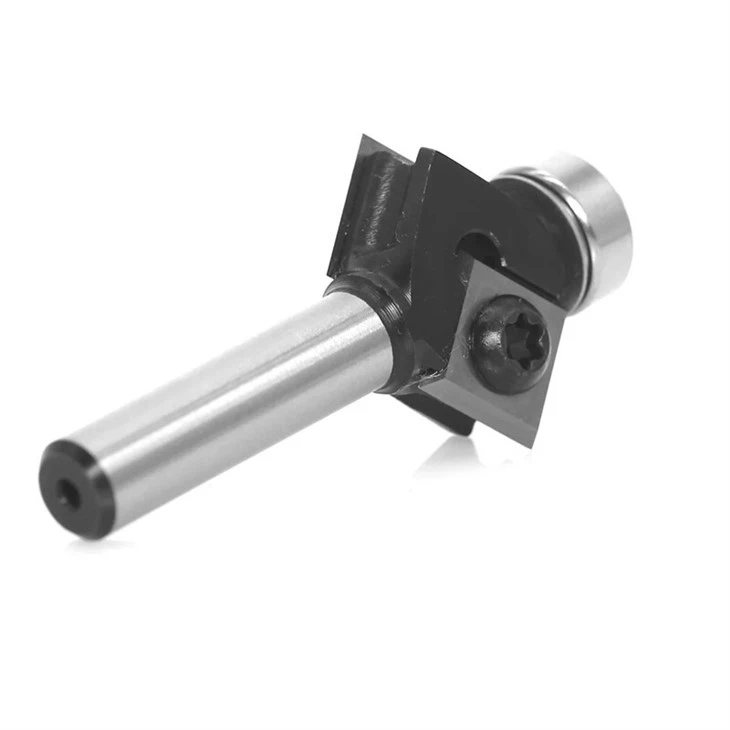

Replacement Bevel Trimming Bit

Specification:

Product name: Replacement bevel trimming cutter

Material: Carbide

Color: gray

Type: plug-in

Optional: bevel, rounded corners

Technical Data:

Depth: 29mm

NL: 12mm

GL: 60mm

Depth: 30mm

East: 45°

Dimensions: 8mm

Shaft (S) 8 mm, diameter (D) 32 mm, usable length (NL) 12 mm, angle (E) 45°, overall length (GL) 65.4 mm

Cutting (Z) 2, Carbide (HW), with ball bearings

Machine: Manual milling machine, desktop milling machine, CNC milling machine

Used in: Soft and hardwoods, particleboard, MDF, plywood, compact board, laminate, acrylic, etc.

Optimized bearing mounts for 1/4" ball bearing rails or ball bearingless rails

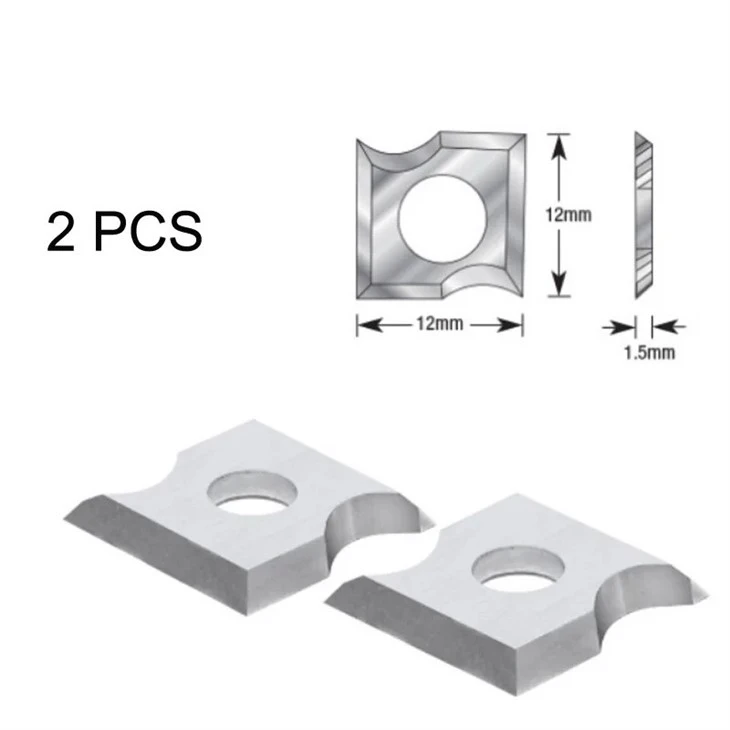

1/2" x 1/2" (12 x 12 mm) double-sided carbide inserts replaceable

Reversible inserts - chamfer milling cutter HW (HM) with ball bearings

Reversible insert - chamfer milling cutter with two axially parallel carbide cutting edges, circumferential cutting and replaceable ball bearings.

Note: The support body can only be equipped with a suitable double-sided knife.

Chamfering cutter with two-axis carbide reversible plate and replaceable ball bearings for side cutting at a 45° angle. Reversible knife can be used on 4 sides. Due to the reversible tool, the tool has a longer service life compared to fixed tools. The double-sided blade can be replaced with a torx wrench.

2-blade design makes the knife more balanced during operation and achieves a smoother surface. Router bits come with an insert blade.

Super-strength steel body, anti-recoil design, 2 cutting blades.

Both edges of the carbide blade can be used, use a screwdriver to hold the other edges out. Replace the carbide insert when needed rather than replacing the entire drill bit.
