V Groove With Carbide CNC Insert

Specification

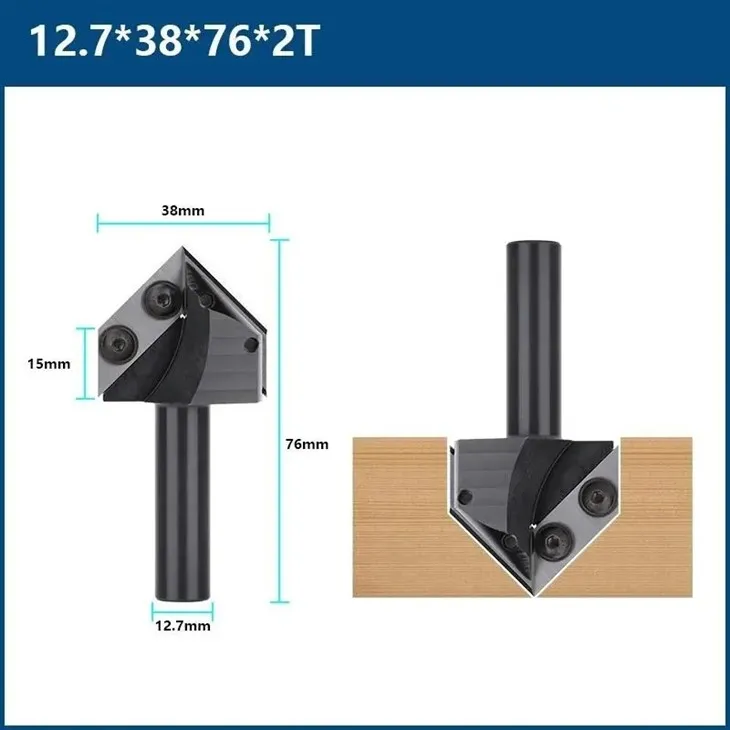

Product name: 90° V-type engraving milling cutter

Material: Carbide

Colour: Black

Angle: 90°

Tool handle: 1/2'' (12.7mm)

Milling cutter diameter: 1-1/2'' (38mm)

Describe:

Innovative CNC tool design features high-quality carbide inserts that serve two uses each. When the blade shows signs of wear, you can rotate the blade to get a new cutting edge.

Cutting Applications:

Wood, MDF, MDP, plywood, other wood materials, acrylic, plastic, composite materials

Advantages of Insert Tools:

Long-lasting insert blade delivers smooth, high-quality cuts every time.

Ability to quickly and accurately replace dull blades.

Extended tool life due to precise insertion Insert tools allow the use of harder carbide grades Special carbide insert grades created for specific applications Economical solution compared to replacement Brazed tools.

The safety locking screw system guarantees maximum safety and maintains cutting accuracy. CNC milling machines require quality fasteners to ensure there is minimal possibility of material movement during operation. WARNING: Always tighten the set screw before using any insertion tool. When replacing a dull blade, clean the tool and remove all dust before inserting the new blade.

Applicable Machines:

CNC milling machine, desktop milling machine, end milling machine, finishing machine, wood planer, engraving machine, bakelite milling machine, cutting machine.

The concentricity is very good, the double-edged cutting design has a sharp edge and no debris remains at the bottom.

High strength, bending resistance and excellent physical properties.

It has good milling and cutting performance to ensure high efficiency.

​
