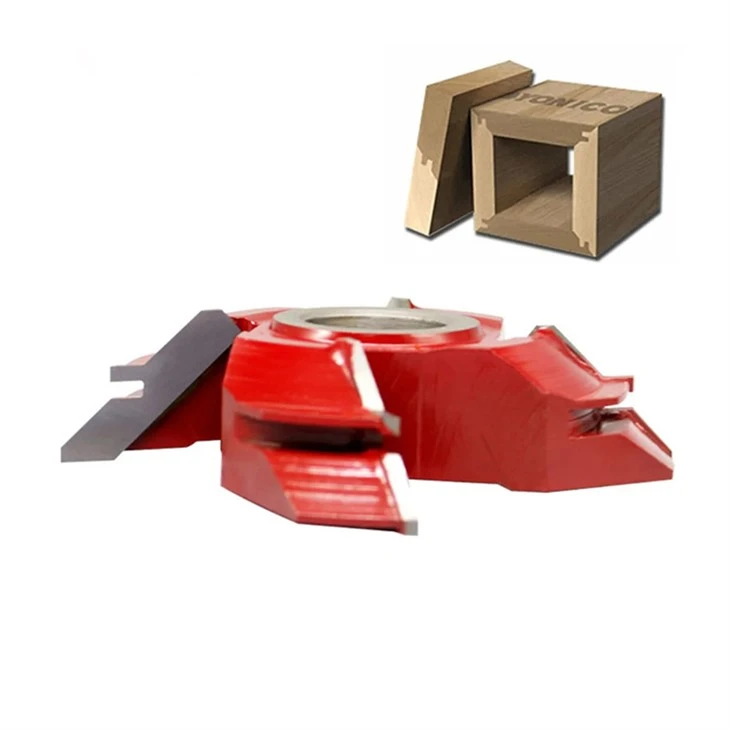

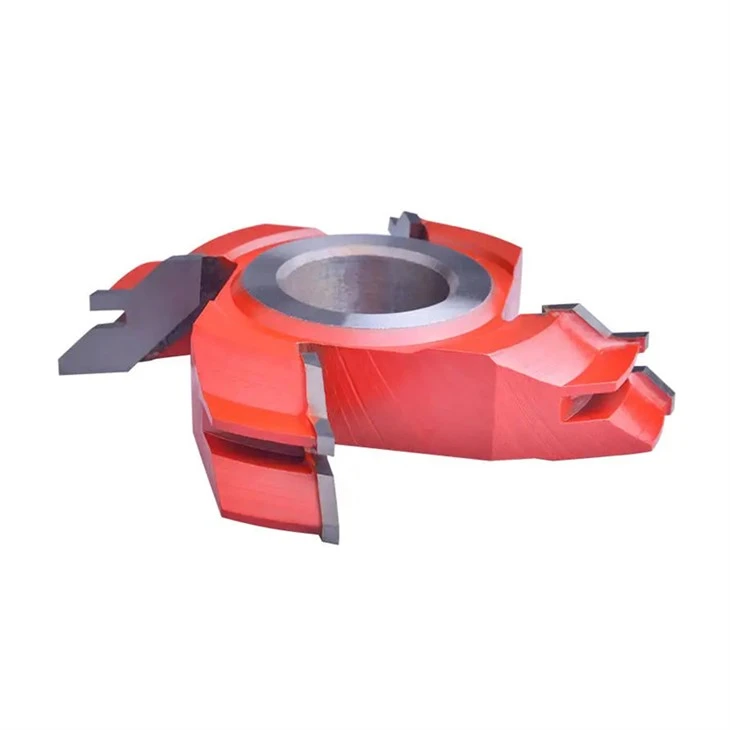

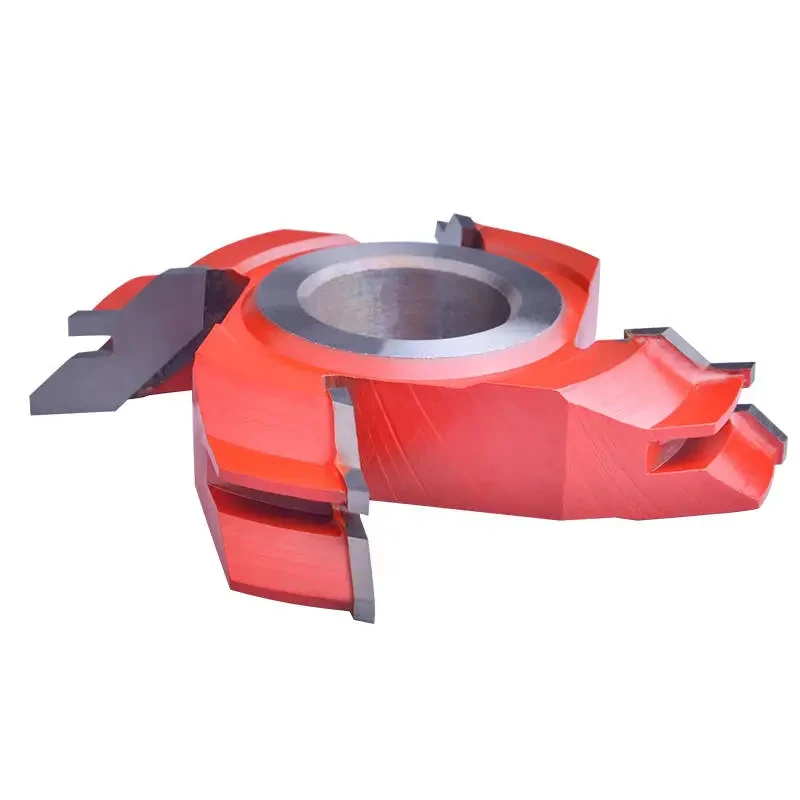

45 Lock Miter Cutter

Product Name: 45 Lock Bevel Cutter

Self-locking cutter for 45° bevel cuts, customizable - Advanced auto-grinding to preserve drill life, making clean cuts in softwood, hardwood, MDF, plywood Brazes well, free of pores and inclusions. Processed by automatic lathe and milling, smooth appearance.

Size:

D=Tool diameter

H=height of wood

T = mortise thickness

D120xH15xT6

D120xH15xT6

D120xH20xT8

D120xH25xT8

D120xH30xT10

D120xH35xT10

D120xH40xT10

D120xH45xT10

D120xH50xT10

D120xH55xT10

D120xH60xT10

D160xH40xT6

1. The cutter body material is 45# steel, HRC 40~42.

2. The cutter head is made of high-quality fine-grained alloy.

3. All are processed with CNC equipment to ensure the side jump and side jump of the product. The diameter runout error is within +-0.02mm.

4. Each finger-jointed knife is processed by high-precision balancing equipment to ensure that the balance tolerance is <0.5g.mm/kg.

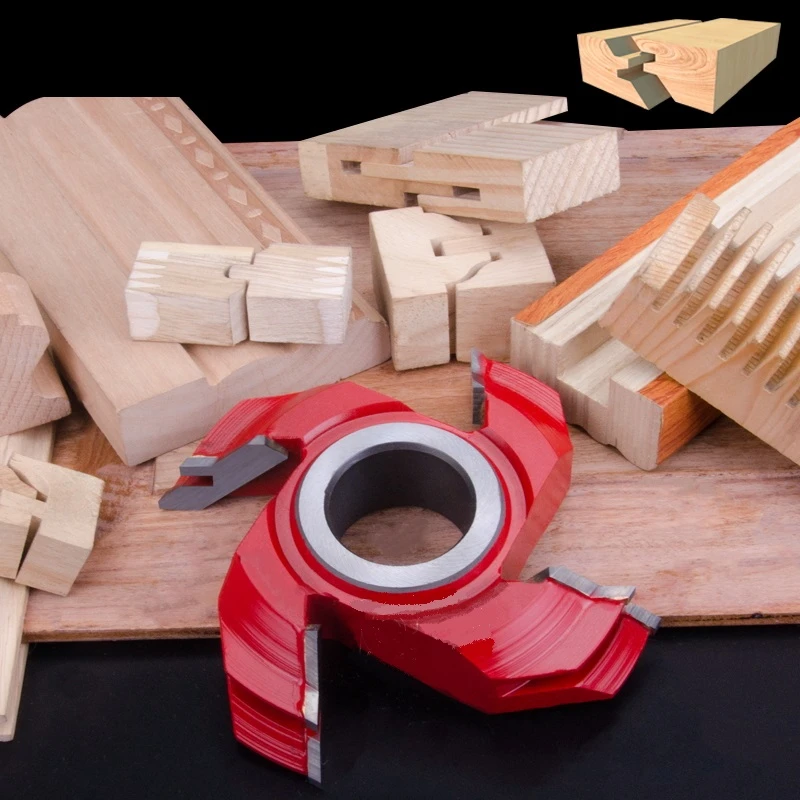

5. Suitable for: Clean cutting on softwood, hardwood, MDF, plywood.
