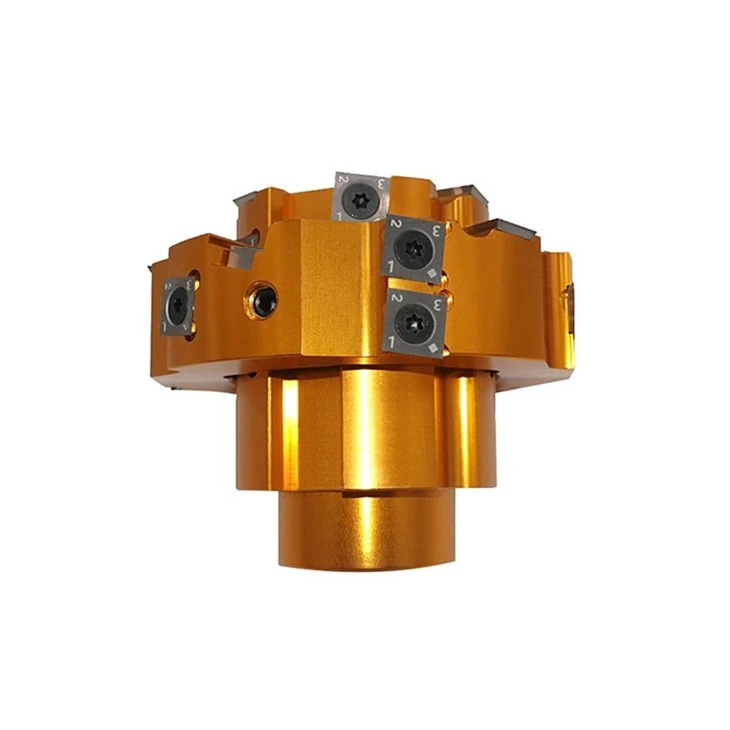

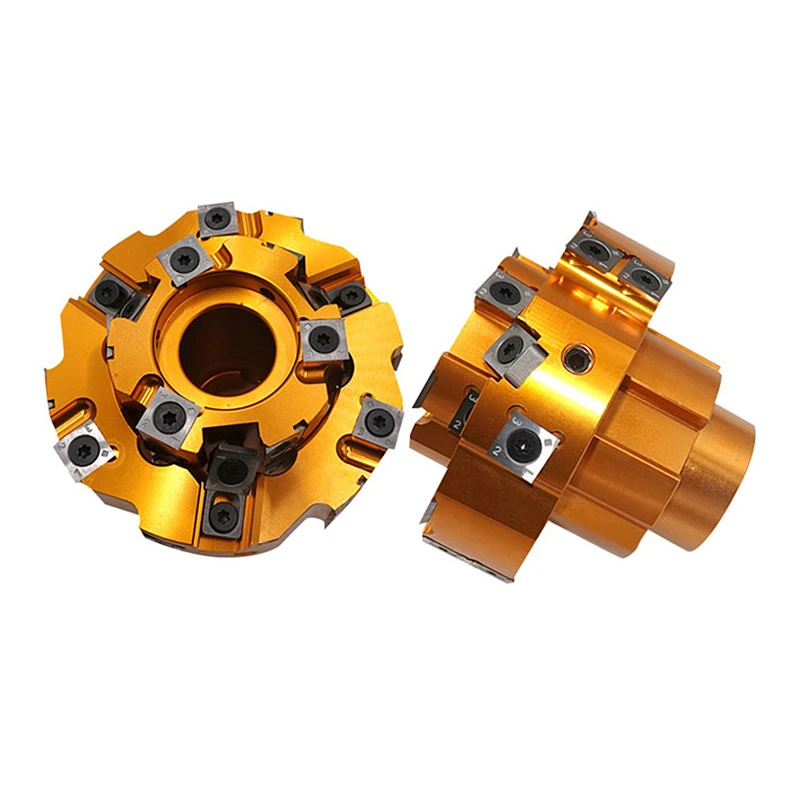

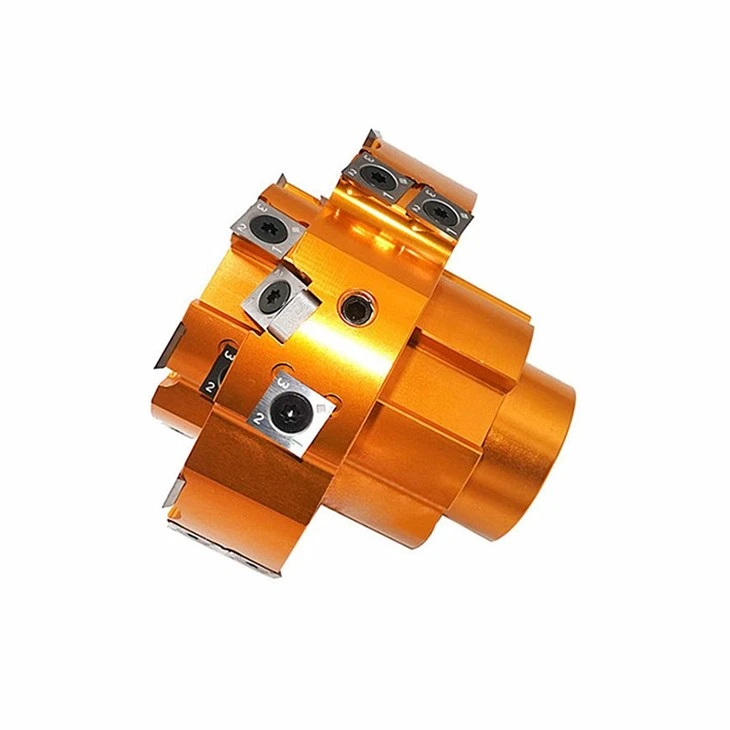

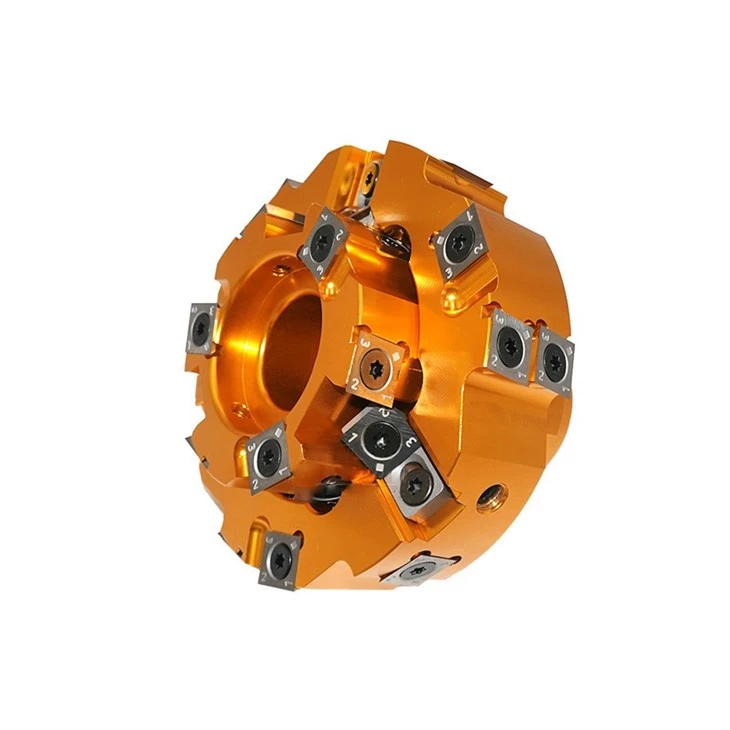

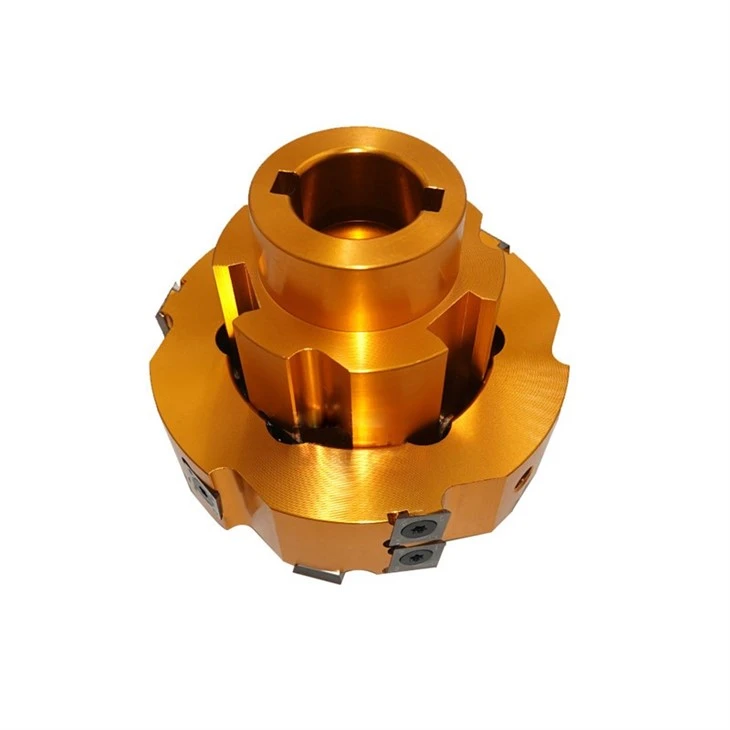

CNC Tenon Cutter Head

High quality adjustable tenon cutting tool insert heads for CNC tenoning machines.

There are four styles of tenon: oval tenon, rectangular tenon, round tenon, and diagonal tenon.

The adjustable tenon cutting tool is specially designed for tenoning machines such as Bacci, Balestrini, Pade and Greda. Available on single- or double-sided machines, these two-piece heads are easy to use and adjust and can produce tenons in lengths from 7– 40mm.

Product Features of Tenon Cutter Head

• Double-ended tenon can be installed, and the working speed can reach 10000rpm.

• Ideal for making tenons from soft and hardwoods.

• 360-degree spiral cutting design.

• Fine wood chips, significantly reducing clogging of dust collection systems.

• Specially designed cutterhead structure eliminates wood tearing problems.

• Adopt chip removal design, no repeated cutting problem.

• The soldering iron tip body is available in alloy steel or super-hard aluminum alloy.
