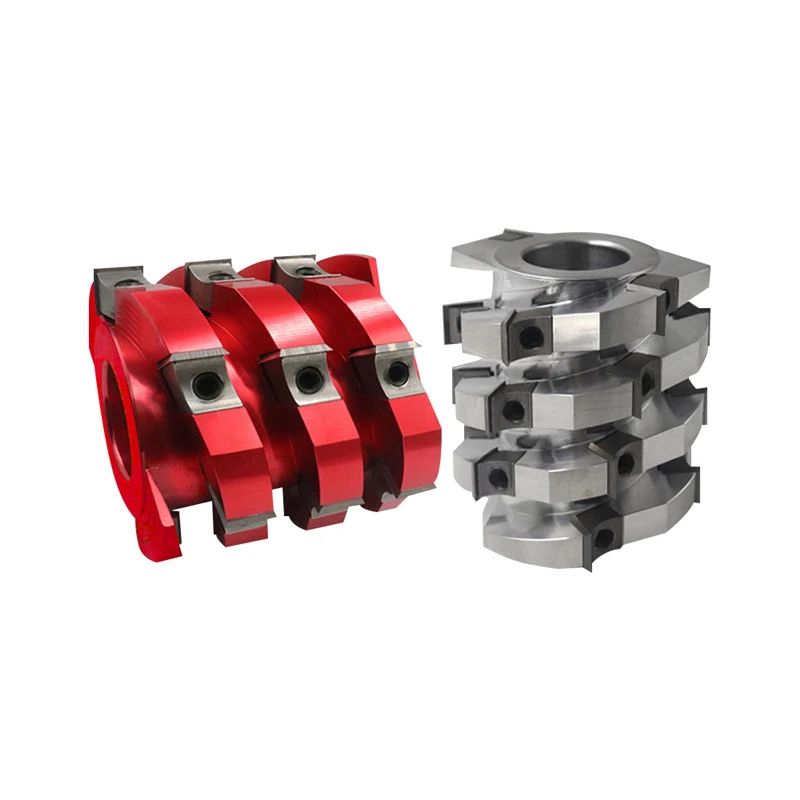

Duty Spiral Cutterhead

Product Description

Name: Disposable spiral re-cutting head / Four-side planing spiral re-cutting head / Profiling milling spiral re-cutting head / Gantry milling spiral re-cutting head / Vertical axis milling spiral re-cutting head / Peripheral milling spiral re-cutting head

Style: pressed block style

Type: heavy cut

Number of teeth (number of revolutions): 4 teeth / 6 teeth / 8 teeth / 9 teeth / 10 teeth / 12 teeth

Product Features

1. The spiral design of the blade enables segmented cutting.

2. Cutting in sections makes the wood chips smaller and easier to absorb.

3. Segmented cutting, lower cutting resistance, lower noise, quieter and more stable machine.

4. Segmented cutting, the surface of the wood machine is smoother and more delicate.

High-end products allow you to buy with confidence and use with peace of mind.



Style And Type

1. Style:

1) Floating version: The blade is flat and directly locked on the knife body

2) Press block version: The blade is erected and locked on the blade body by the press block.

2. Type:

Heavy cutting (suitable for soft and hardwood):

(1) Equipped with 15*15*2.5 blade floating version

(2) Equipped with 15*15*2.5/R150 arc blade floating version

(3) Equipped with 14*14*2.0 blade press block model

(4) Equipped with 30*12*1.5 blade press block model



Compared with the segmented cutting design of straight blades, arc blades have more advantages.

1. The arc design of the blade enables point cutting.

2. Point cutting, the wood chips are smaller and more conducive to adsorption

3. Point cutting, lower cutting resistance, lower noise, quieter and more stable machine

4. Point cutting, the surface of wooden parts is smoother and more delicate



Various Special Spiral Cutter Heads

Special spiral cutter head for high-speed four-sided planing

The feeding speed of ordinary four-sided planers is 6-18 meters, which is enough with a 6-tooth spiral cutter head. However, for high-speed four-sided planers, the feeding speed is very fast, ranging from 50 meters to 90 meters on the market. Ordinary 6-tooth spiral cutter heads are no longer sufficient, and the number of teeth needs to be increased, from 6 teeth to 8 teeth, 9 teeth, 10 teeth or even 12 teeth. In order to meet the demand, the spiral cutter head we developed can already meet the requirements of various high-speed four-sided planing machines currently on the market.



Customization Tips

You need to provide the following data so that we can match you with the most suitable knife

1. Use the machine to see if there are counterbore holes

2. Specific dimensions of cutter head height, outer diameter, and hole diameter

3. The wood to be beaten (softwood or hardwood, determines the type of blade)

4. Machine feeding speed (determines the number of teeth of the cutter head)



Why Use a Disposable Spiral Cutter?

With the development of science and technology, spiral cutter heads have gradually replaced traditional flat cutter heads, and in the near future, spiral cutter heads will gradually become popular in the woodworking machinery industry. As an innovative product of flat cutter heads, spiral cutter heads are discarded. It has become the standard tool for woodworking machinery in Europe and the United States.



Advantages of Spiral Cutter

1. Spiral cutter surface: High-precision design and manufacturing technology arranges the disposable blades reasonably and evenly around the cutter body, forming a smaller cutting surface per unit time to achieve segmented cutting effects.

2. Small wood chips: The cutting area per unit time is small during cutting, and the wood chips formed are extremely small. The wood chips can be easily absorbed in the central vacuum system, making the working environment cleaner and more comfortable.

3. The planing effect is smoother and more delicate: The high-precision design of the cutter body and blade, plus the benefits of segmented cutting, make the planing smoother and more delicate.

4. Low noise: The noise value produced by contacting the wood surface per unit time and when the flat knife contacts the wood surface processing at the same time is reduced by approximately 30 to 50dB.

5. The machine is more stable: the cutting area per unit time is small, the friction is small, and the cutting resistance is small, which causes the machine to vibrate less, so it is more stable.

6. Fast heat dissipation: Our cutter body adopts 7 series aerospace grade aluminum alloy cutter body design, which not only improves the heat dissipation speed, but also improves the stability of the cutter and the structural strength of the cutter body, thereby improving the use of the cutter body. life.

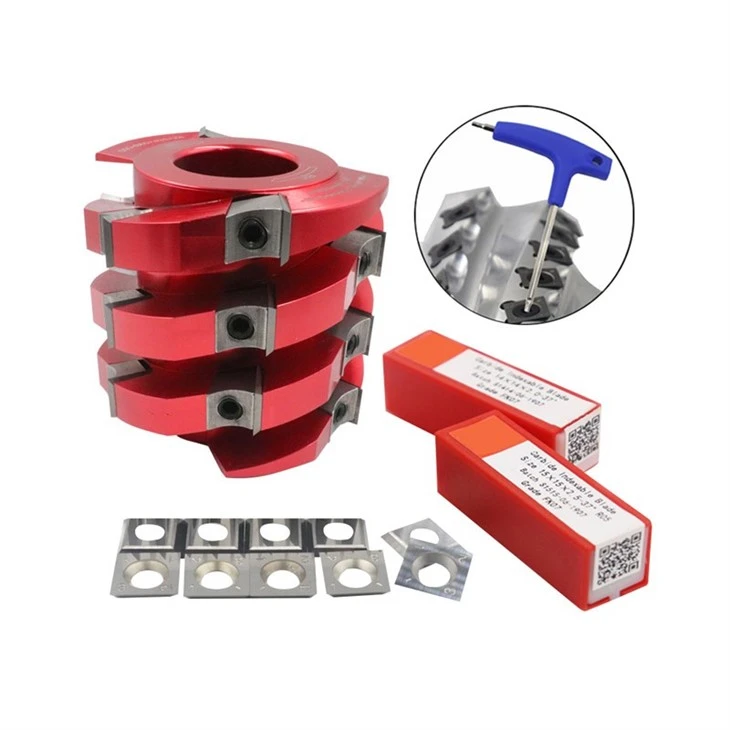

7. Disposable blade: The imported top-grade Luxembourg small blade is assembled without high-temperature welding to ensure that the original hardness of each blade is above HRA93.5 degrees, which greatly increases the service life of the tool. When the blade becomes dull, the factory operator can disassemble the blade and replace the blade/blade by himself. The operation is simple and saves time and investment costs.

8. Long service life: The service life of the aluminum alloy knife body is 2 times longer than that of ordinary flat blades. If used on double-sided planing and four-sided planing, the service life is more than 3 times longer.

9. Cost of use: After testing and long-term use, spiral knives save money, time and worry compared to traditional white steel knives.
