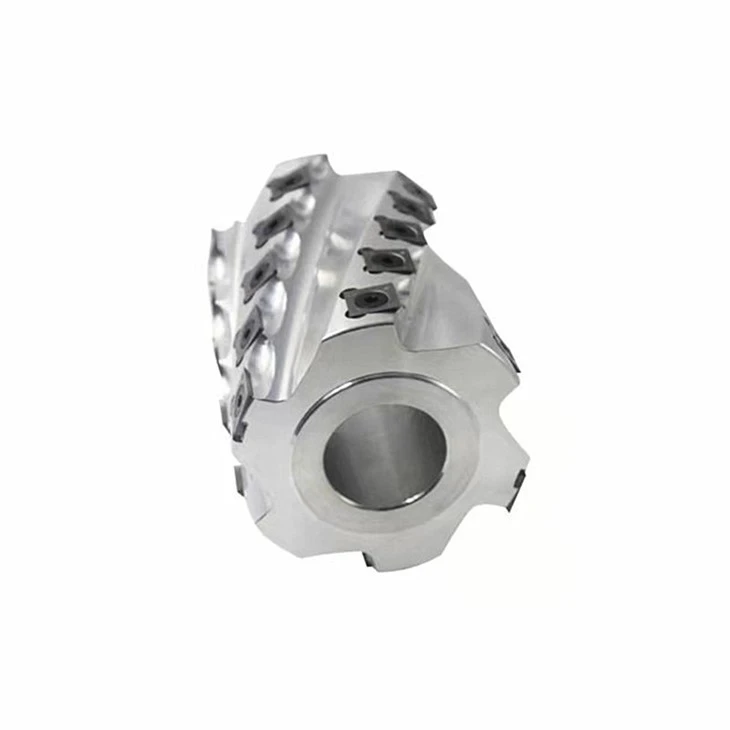

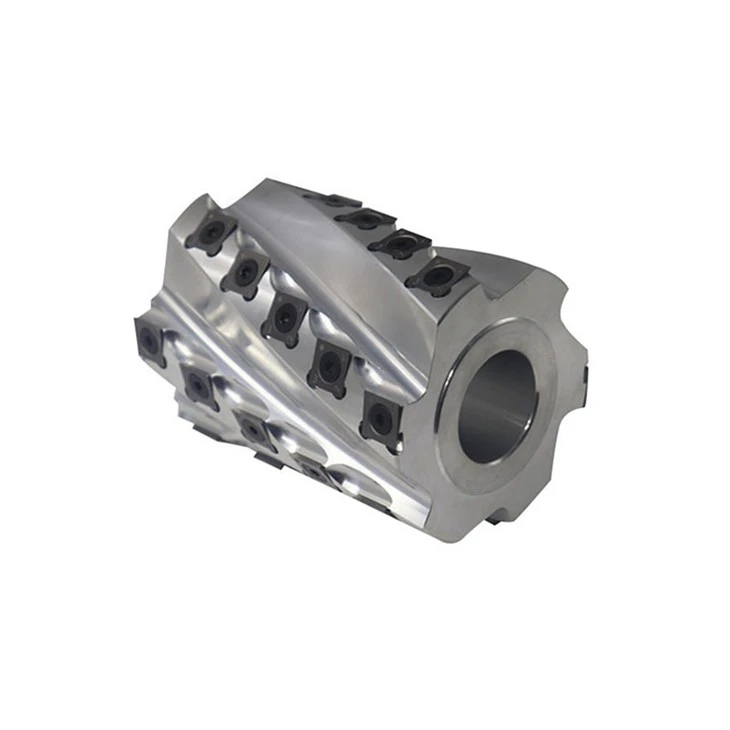

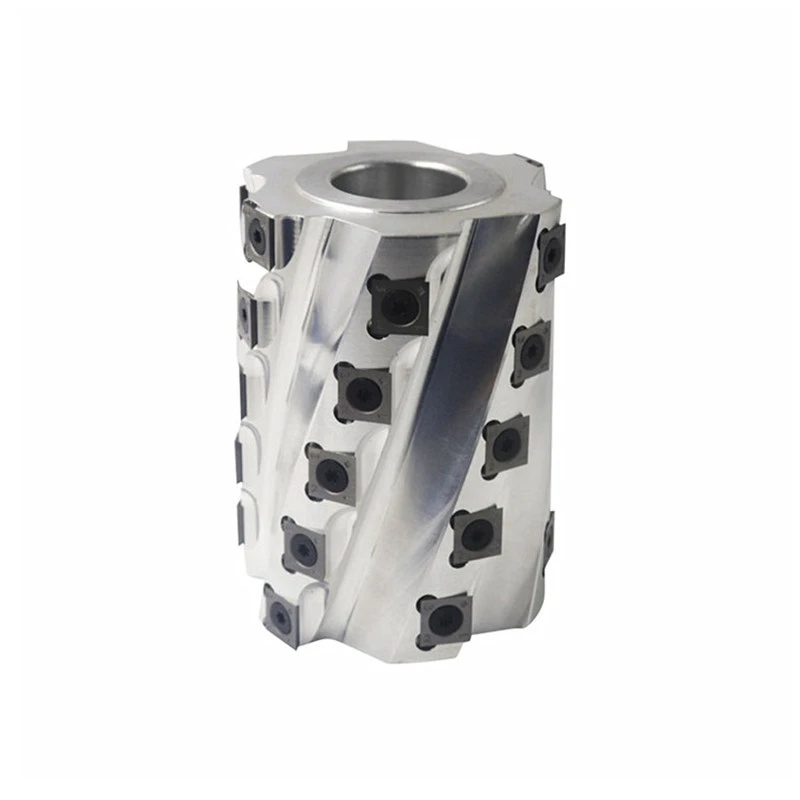

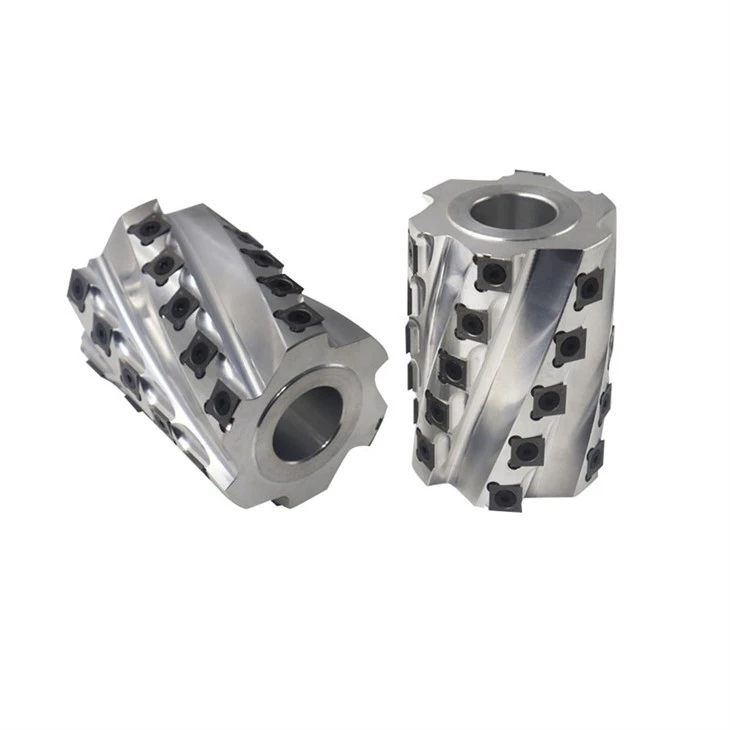

Spiral Planing Cutter Head

Disposable Spiral Light Cutter Shaft

The focus of the disposable spiral light cutter shaft is on its key elements such as energy saving, reducing burden, improving wood processing yield, improving yield and customized design, providing a more comprehensive understanding for woodworking professionals.

1. Save energy and reduce load

During the cutting process, the friction force is significantly reduced and the cutting resistance is very small, which achieves the effect of easy chip removal and energy saving; it reduces the overall load of the machine during operation and greatly extends the service life of the machine.

The design of the disposable spiral light cutter shaft pays attention to energy saving and environmental protection, making it a pioneer in environmental protection. By using an efficient motor and advanced cutter spindle design, it effectively reduces energy consumption and provides a more environmentally friendly option for woodworking production. This innovation not only reduces production costs, but also conforms to the trend of green production.

2. Improve efficient wood processing output: a single blade can be used for more than 2 months, which greatly increases monthly wood processing output.

The cutting design of the disposable spiral light cutter shaft performs well in wood processing. The cutting effect of its cutting tools is better, and it can adapt to different woods and species of wood. This efficient and fast cutting method has greatly increased the output of woodworking processing and brought significant output growth to the woodworking industry.

Improve yield: more accurate cutting and lower scrap rate

The precision design and efficient cutting method of abandoning the spiral light cutter shaft make wood cutting more precise. This not only improves the accuracy of woodworking, but also reduces the scrap rate. Precise cutting means higher quality finished products, creating more cost-effective products for woodworking masters.

Customized Design

Meet individual needs and create personalized craftsmanship.

The disposable spiral light cutter shaft pays attention to individual needs and provides more possibilities for woodworking masters through customized design. Each woodworking project has unique requirements. The disposable spiral light cutter shaft can be personalized according to these needs. From the shape and size of the tool to the adjustment of cutting parameters, it can be customized to meet the needs of different woodworking masters.

Applicable Fields and Scenarios

Furniture manufacturing companies: The disposable spiral light cutter spindle, which is energy-saving, efficient in cutting and improves the yield rate, provides furniture manufacturing companies with more intelligent woodworking processing solutions, making production more green and efficient.

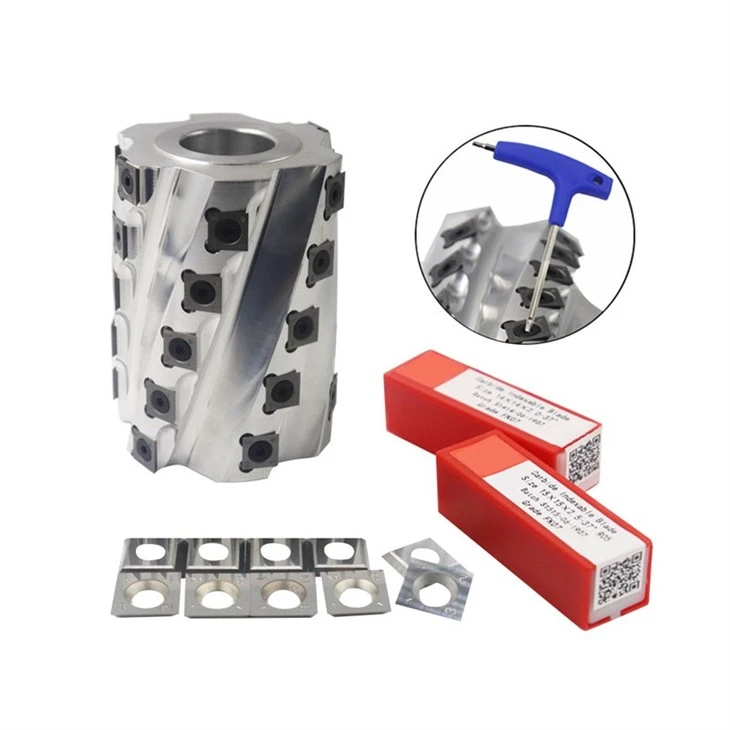

Installation Instructions for Spiral Cutter Spindle

1. When the spiral cutter shaft has been installed on the machine and the blade is replaced, the power of the equipment must be turned off first.

2. Use an air gun or brush to remove debris, dust and other foreign matter on the cutter shaft.

3. Turn the wrench counterclockwise to loosen the screws (if any screws are too tight or rusty to loosen, knock the screws first, being careful not to knock the blade, and then use the wrench to loosen them).

4. Use an air gun or brush to remove debris and dust on the knife holder to ensure it is clean. To avoid blade breakage or "edges" on the planing surface.

5. When changing the cutting edge, clean the blade and rotate it 90 degrees.

Note: There is a marking point on the surface of the blade to ensure consistent orientation and avoid replacing the old and new blade surfaces by mistake.

6. Gently press the blade and slide it a few times to make the bottom surface of the blade fit the tool holder. Tighten the screw clockwise, and the blade will automatically press against the tool holder positioning table. (Note: In order to ensure that the screws and screw holes will not be stuck or rusted, and will not be easy to loosen next time, the screws need to be lubricated with some engine oil when changing the blade).

7. Carefully check whether the blade is placed correctly on the tool holder to avoid breaking the blade or having edges on the cutting surface when locking the blade.

8. Check the blade before use. If it is broken, please replace it immediately to avoid safety accidents and product damage. Check the screws frequently to prevent them from loosening.

Spiral Cutter Shaft

Usage time: Change the blade x4 times in 2-3 months.

Cutting resistance: decreased by 40% year-on-year, saving energy and reducing consumption.

Maintenance cost: 2000-3000 yuan/year

Safety: There is no need to disassemble the blade for a long time, and the rate of work-related accidents is small.

Operation and maintenance: General workers only need two shifts of pre-job training to be able to operate skillfully. Salary costs can be greatly reduced, and operation and maintenance labor difficulties are relatively small.
