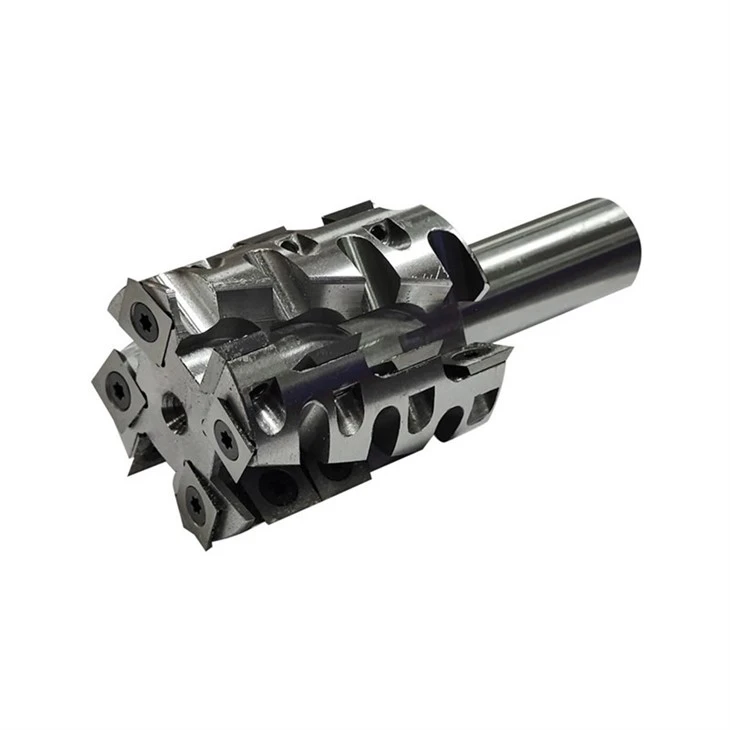

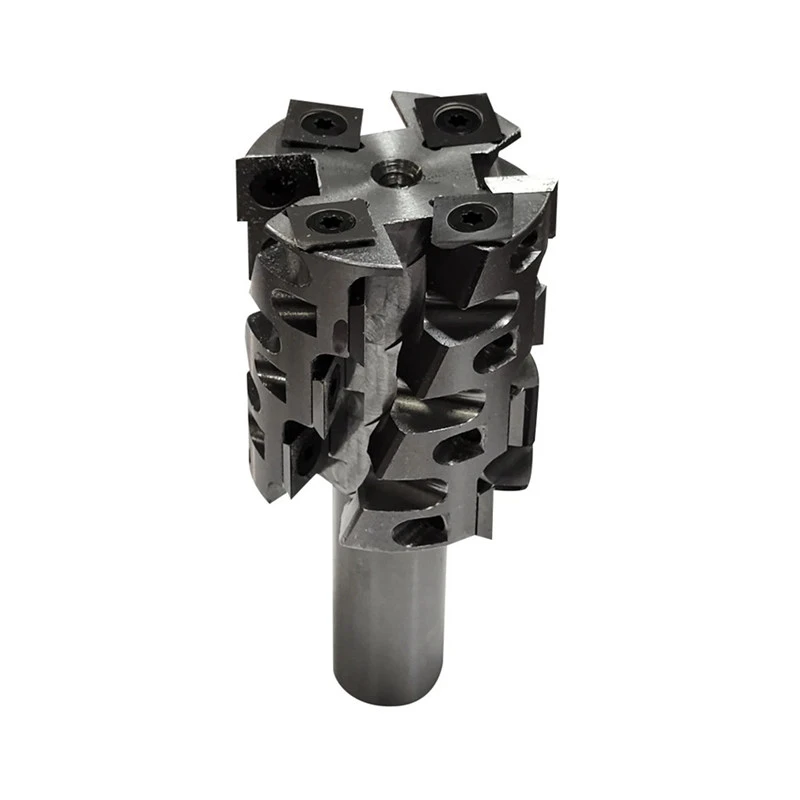

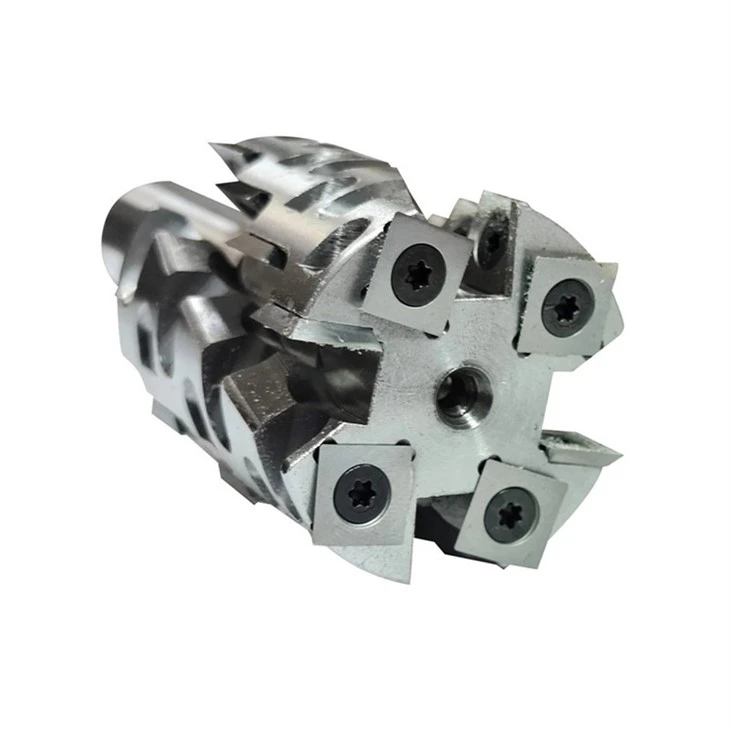

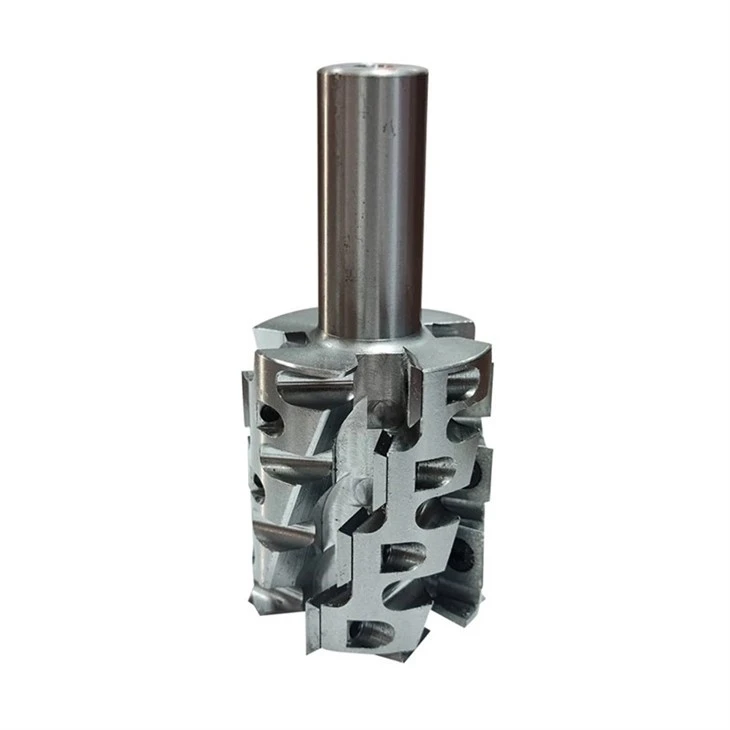

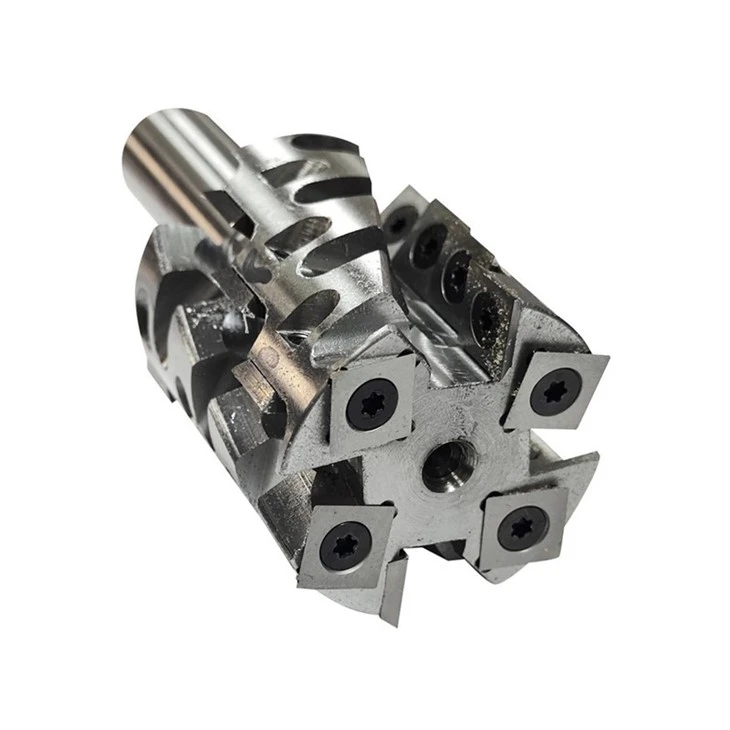

Milling CNC Bit with Carbide Inserts

Disposable Spiral Trimming Bottom Knife

This indexable cutting tool is used with a CNC woodworking router. The spiral cutter head is designed for edge planing and grooving in solid hardwood.

• Heavy cutting spiral alloy milling cutters for CNC machining centers.

• 45# steel body.

• With 12x12x2.2-35° blade.

• Dislocation sorting: The cutting point is misaligned, and the contact between the blade and the workpiece surface is smaller, making the cutting smoother.

• Universal tool holder: suitable for machining centers, tenoning machines, etc.

• Carbide insert: Indexable carbide insert with replaceable locking device.

Indexable Cnc Milling Machine Spiral Drill Bit Size Reference:

Dexterous: D40xd20xH50mm D50xd20xH50mm D50xd20xH60mm D50xd20xH80mm D50xd20xH100mm Other special specifications can be customized and produced according to the specific needs of customers. Left-hand rotation also available!

Specifically designed for CNC woodworking CNC machining centers, it can achieve highly automated woodworking processing. Precise and efficient processing makes it an indispensable tool in modern woodworking workshops, improving production efficiency and product quality.

The four sides of the blade are replaceable, extending the service life of the blade. When one side is worn, you only need to flip or replace the blade without replacing the entire tool. The disposable design makes blade replacement very convenient and does not require professional operating skills. Users can complete the blade replacement with simple operations, reducing downtime and improving production continuity and efficiency.

Not only can it be used for trimming, but it can also be used for various woodworking tasks such as grooving and shaping. Its multi-functional design allows one knife to meet a variety of process needs, improving production flexibility.

The bottom of the knife is designed with a blade for more thorough cleaning. Whether it is trimming or bottom cleaning, it can be completed in one go, ensuring that the bottom of the woodworking product is smooth and neat, improving the overall aesthetics of the product.

The disposable spiral trimming and cleaning knife not only performs well in trimming solid wood and artificial boards, but is also handy in cleaning various types of boards. Widely used in woodworking processing fields.
