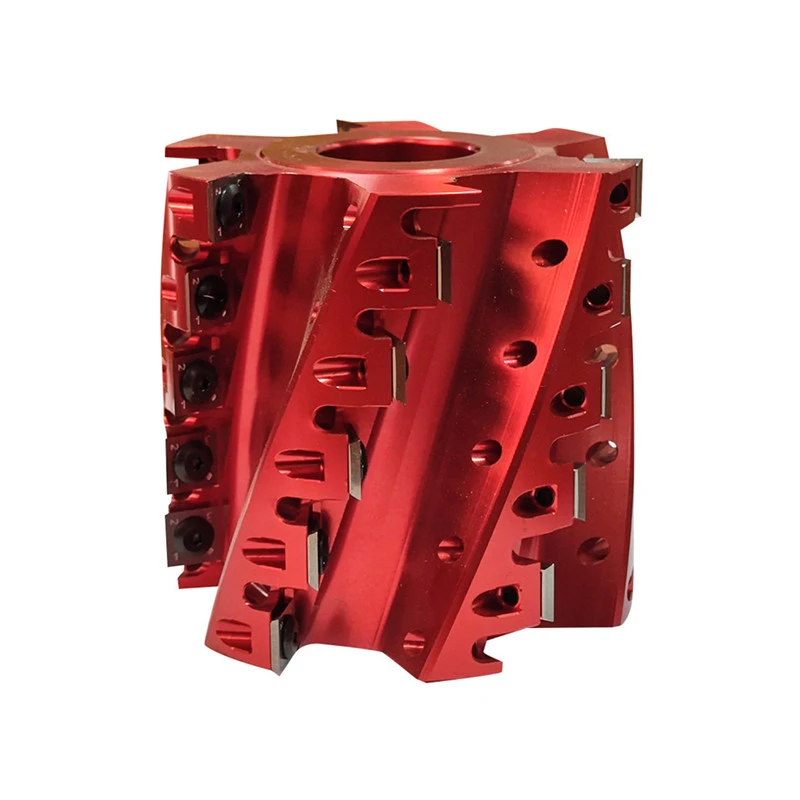

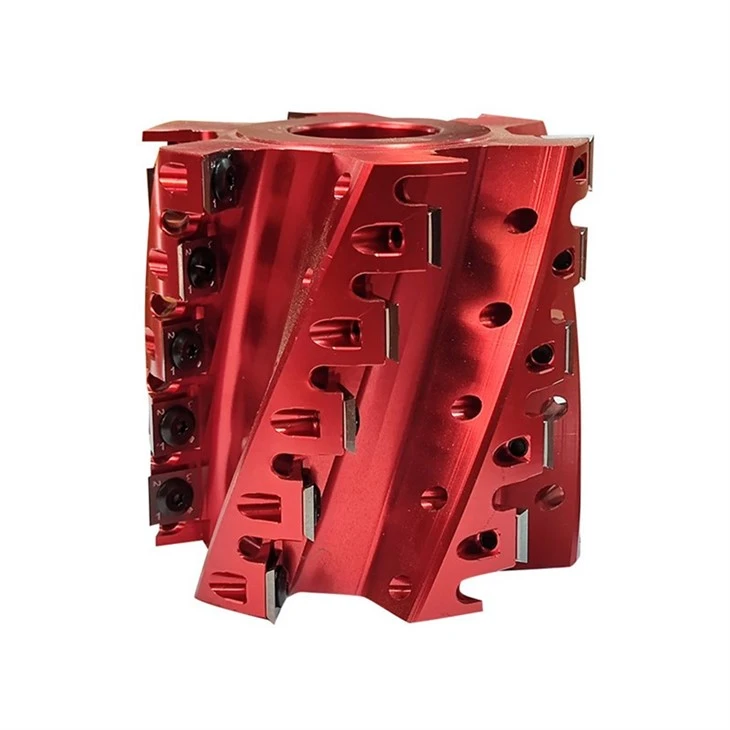

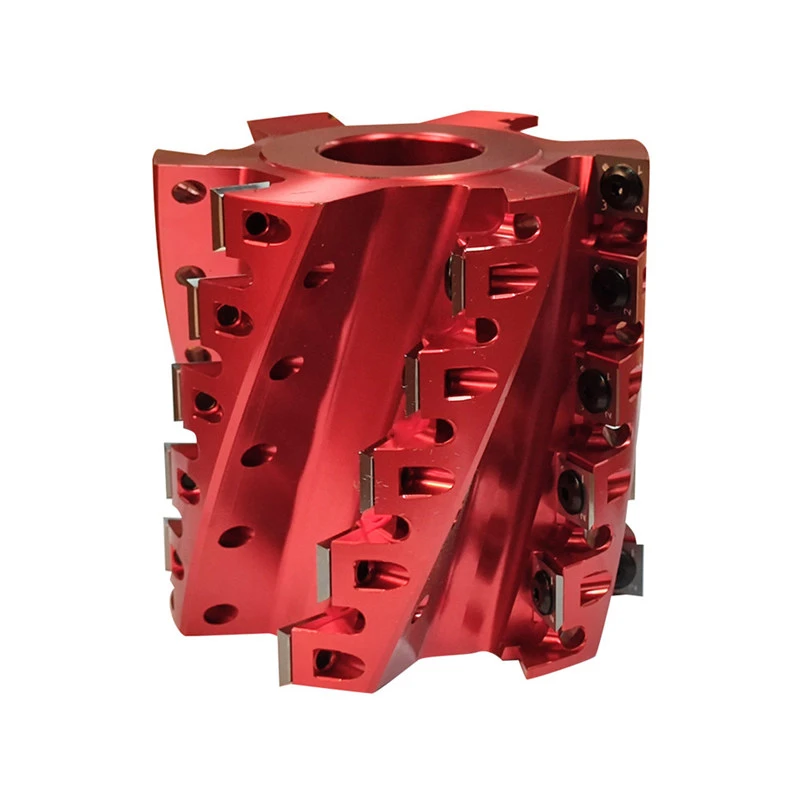

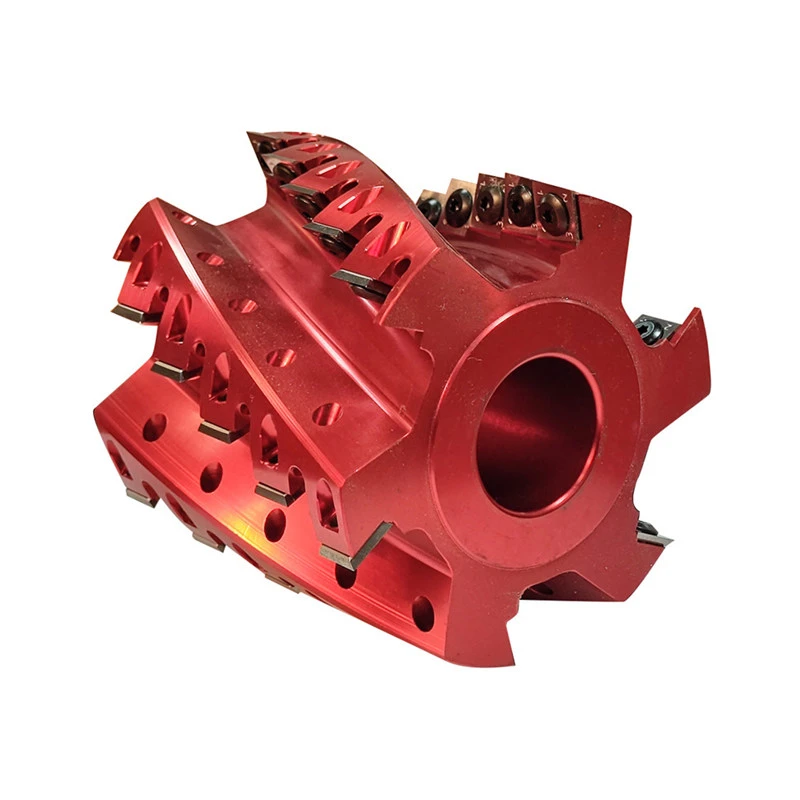

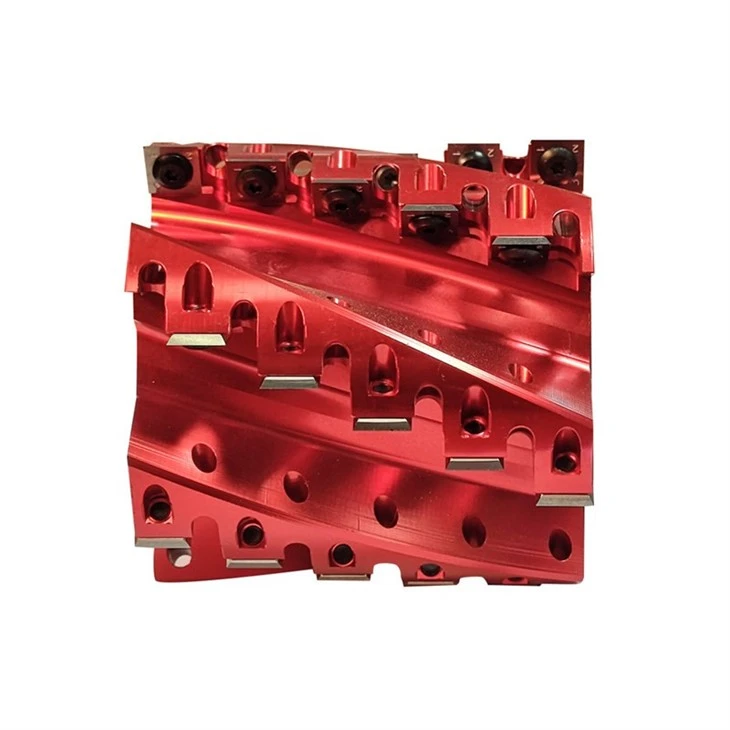

Spiral Cutterhead

The spiral cutter head can be adapted to vertical machines, copy milling machines, and four-sided forming machines.

The knife body is available in steel or aluminum alloy.

Blade size: 15x15x2.5mm

Standard sizes:

Outer diameter: 90DX60WX35d

125DX100WX40 or 50d

90DX60WX35d

90DX80WX35d

90DX100WX35d

90DX120WX35d

90DX130WX35d

100DX60WX35 or 40d

100DX80WX35 or 40d

100DX100WX35 or 40d

100DX130WX35 or 40d

100DX150WX35 or 40d

100DX180WX35 or 40d

125DX60WX40 or 50d

125DX80WX40 or 50d

125DX100WX40 or 50d

125DX130WX40 or 50d

125DX150WX40 or 50d

125DX180WX40 or 50d

125DX200WX40 or 50d

100DX230WX35 or 40d

Other special specifications can be produced separately. Spiral cutterheads can meet different woodworking processing needs with their diverse customized designs. Users can select parameters such as tool diameter, number of blades, and cutting depth according to specific projects.

The use of high-strength aluminum alloy material not only ensures the lightness of the cutterhead and reduces the load on the equipment, but also gives it a solid structure and improves durability, allowing the cutterhead to maintain excellent performance during long-term high-speed operation.

The blade is the core component of the spiral cutterhead and is made of high-hardness tungsten carbide with excellent wear resistance. In high-speed cutting, tungsten carbide blades can easily handle all types of hardwood and maintain stable cutting performance of the cutterhead.

Designed for heavy-duty cutting, reaching a cutting depth of 10MM at a time. This efficient cutting depth greatly improves woodworking efficiency, making it an ideal tool for processing large pieces of wood and rapid prototyping.

In order to ensure the stability and user experience of the spiral cutterhead during high-speed operation, each spiral cutterhead undergoes strict dynamic balancing machine testing. As a result, the spiral cutter head has low noise, fast cutting, stable and reliable operation.
